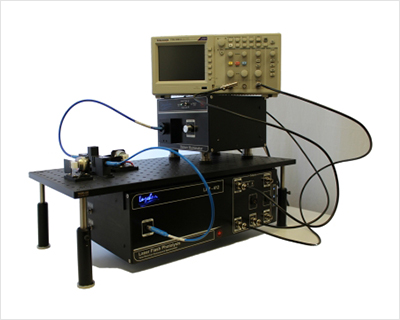

Luzchem Research Inc. has released the latest version of their patented turn-key miniaturized laser flash photolysis system.
The LFP-412 is now available.
This system that makes complex electronics, cumbersome software and large optical benches a thing of the past.
The LFP system incorporates everything needed except the excitation laser.

This is a simple, yet powerful instrument, ready to perform a wide range of time resolved kinetic and spectroscopic measurements involving transient absorption or diffuse reflectance. The LFP system, including the monochromator and digitizer is completely computer controlled, making it easy to obtain kinetic and spectral data.
°Ë»ö
Àüü¼±ÅÃ
Thumbnail Catalog Description Packaging Specification

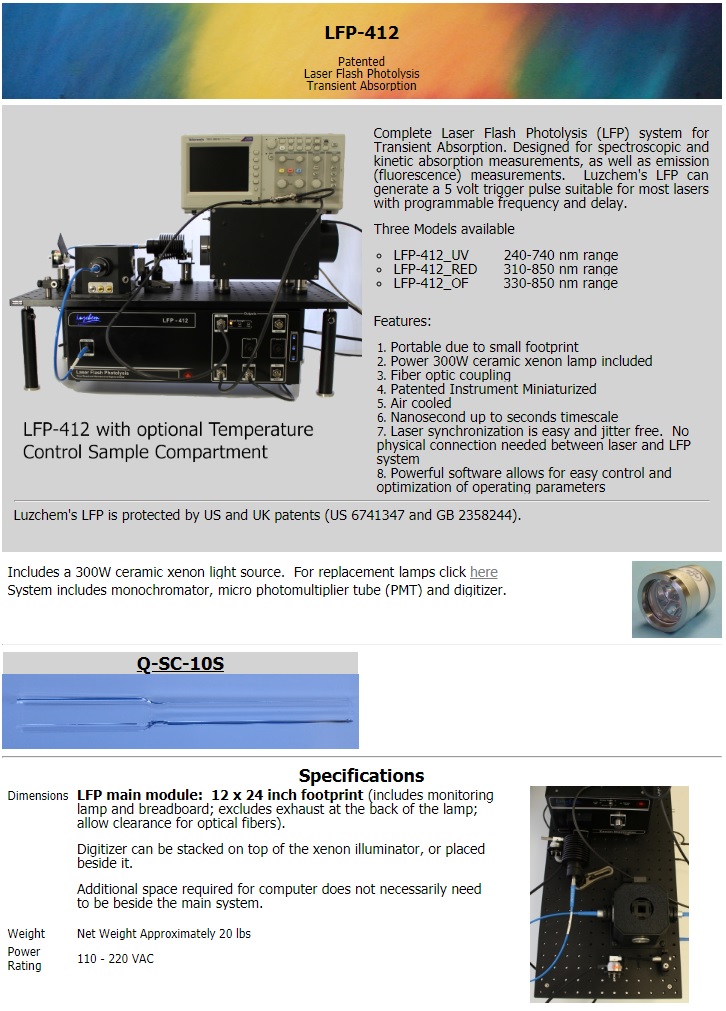

LFP-412_UV Complete laser flash photolysis system (Spectral Range 240-740 nm) for spectroscopic and kinetic measurements ceramic xenon light source; 125 mm monochromator; Tektronix digitizer TDS-2000 series with 50 MHz bandwidth; micro photomultiplier and power supply; computer (user's choice of desktop or laptop); cell holder and fiber optic connectors; fiber optic sensor for laser-sensing pre-trigger signal; all interfaces and software needed to operate the system. Does not include laser. [ Footprint ] LFP unit: 12¡± x 24¡± (20 cm x 61 cm) – includes xenon lamp for Transient Absorption, breadboard, sample compartment and optics. Digitizer: (15¡± x 6¡±; 38cm x 15 cm) can be placed on xenon lamp. Computer: option of desktop or laptop [ Weight ] 50 lbs/ 23 kg (approximate) [ Power Rating ] 110-240 VAC, 50/60 Hz cycle, 3 Amp [ Ambient Temperature ] Must be between 5¨¬C and 55 ¨¬C [ Humidity ] Must be between 0% and 95% (non-condensing) [ Time Response and Time Scales ] Detector: ~7 ns risetime Digitizer: 50 MHz bandwidth; 8 bit resolution; record seize: 2,500 points at all time bases; Series TDS2000 Note that the TDS2000 series has many other functions, that are not employed in the LFP systems. Short time scales: 10 ns with built-in amplifier, or 20 ns with external amplifier Long time scales: Millisecond measurements readily performed. [ Spectral Range ] User-selected at the time of order. Cannot be changed by user. UV option: 240-740 nm with standard PMT and grating [Specifications »ó¼¼ ÆÄÀÏ ÂüÁ¶]
LFP-412_RED Complete laser flash photolysis system (Spectral Range 310-850 nm) for spectroscopic and kinetic measurements Complete laser flash photolysis system for spectroscopic and kinetic measurements, including: ceramic xenon light source; 125 mm monochromator; Tektronix digitizer TDS-2000 series with 50 MHz bandwidth; micro photomultiplier and power supply; computer (user's choice of desktop or laptop); cell holder and fiber optic connectors; fiber optic sensor for laser-sensing pre-trigger signal; all interfaces and software needed to operate the system. Does not include laser. [ Footprint ] LFP unit: 12¡± x 24¡± (20 cm x 61 cm) – includes xenon lamp for Transient Absorption, breadboard, sample compartment and optics. Digitizer: (15¡± x 6¡±; 38cm x 15 cm) can be placed on xenon lamp. Computer: option of desktop or laptop [ Weight ] 50 lbs/ 23 kg (approximate) [ Power Rating ] 110-240 VAC, 50/60 Hz cycle, 3 Amp [ Ambient Temperature ] Must be between 5¨¬C and 55 ¨¬C [ Humidity ] Must be between 0% and 95% (non-condensing) [ Time Response and Time Scales ] Detector: ~7 ns risetime Digitizer: 50 MHz bandwidth; 8 bit resolution; record seize: 2,500 points at all time bases; Series TDS2000 Note that the TDS2000 series has many other functions, that are not employed in the LFP systems. Short time scales: 10 ns with built-in amplifier, or 20 ns with external amplifier Long time scales: Millisecond measurements readily performed. [ Spectral Range ] User-selected at the time of order. Cannot be changed by user. RED option: 310-850 nm with RED PMT and grating [Specifications »ó¼¼ ÆÄÀÏ ÂüÁ¶]
LFP-412_OF Complete laser flash photolysis system (Spectral Range 330-850 nm) for spectroscopic and kinetic measurements Complete laser flash photolysis system for spectroscopic and kinetic measurements, including: ceramic xenon light source; 125 mm monochromator; Tektronix digitizer TDS-2000 series with 50 MHz bandwidth; micro photomultiplier and power supply; computer (user's choice of desktop or laptop); cell holder and fiber optic connectors; fiber optic sensor for laser-sensing pre-trigger signal; all interfaces and software needed to operate the system. Does not include laser. [ Footprint ] LFP unit: 12¡± x 24¡± (20 cm x 61 cm) – includes xenon lamp for Transient Absorption, breadboard, sample compartment and optics. Digitizer: (15¡± x 6¡±; 38cm x 15 cm) can be placed on xenon lamp. Computer: option of desktop or laptop [ Weight ] 50 lbs/ 23 kg (approximate) [ Power Rating ] 110-240 VAC, 50/60 Hz cycle, 3 Amp [ Ambient Temperature ] Must be between 5¨¬C and 55 ¨¬C [ Humidity ] Must be between 0% and 95% (non-condensing) [ Time Response and Time Scales ] Detector: ~7 ns risetime Digitizer: 50 MHz bandwidth; 8 bit resolution; record seize: 2,500 points at all time bases; Series TDS2000 Note that the TDS2000 series has many other functions, that are not employed in the LFP systems. Short time scales: 10 ns with built-in amplifier, or 20 ns with external amplifier Long time scales: Millisecond measurements readily performed. [ Spectral Range ] User-selected at the time of order. Cannot be changed by user. Ozone-free option: 330-850 nm with RED PMT and grating, and ozone-free xenon lamp [Specifications »ó¼¼ ÆÄÀÏ ÂüÁ¶]

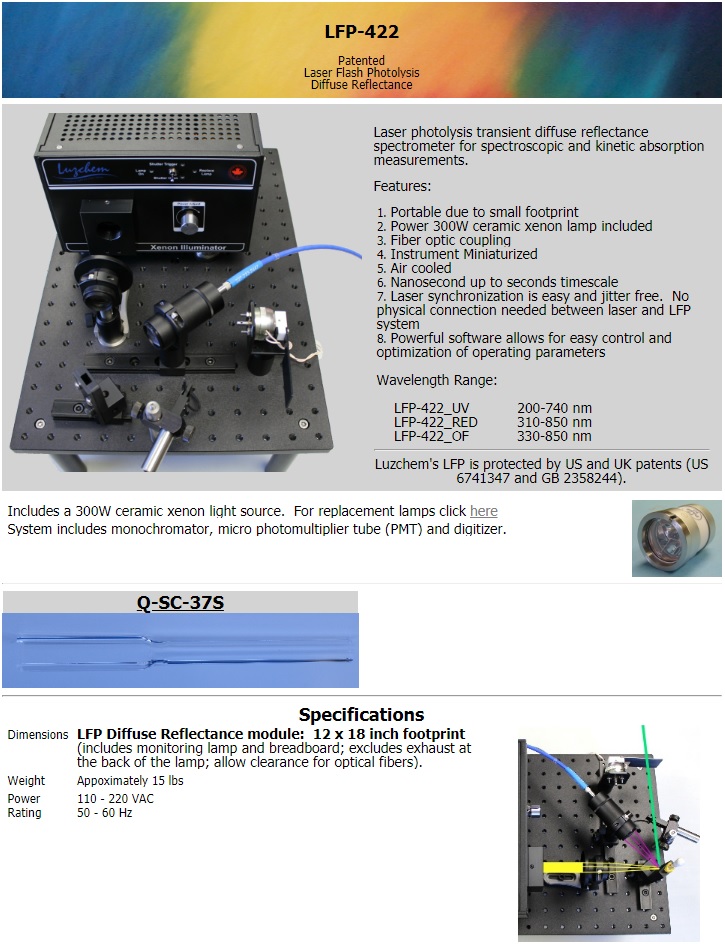

LFP-422 Patented Laser Flash Photolysis Diffuse Reflectance NEW PRICE! Laser photolysis transient diffuse reflectance spectrometer. (Spectral Range 330-850 nm) including: ceramic xenon light source; 125 mm monochromator; Tektronix digitizer TDS-2000 series with 50 MHz bandwidth; micro photomultiplier and power supply; computer (user's choice of desktop or laptop); cell holder and fiber optic connectors; fiber optic sensor for lasersensing pre-trigger signal; all interfaces and software needed to operate the system. Does not include laser. Dimensions [ LFP Diffuse Reflectance module: 12 x 18 inch footprint (includes monitoring lamp and breadboard; excludes exhaust at the back of the lamp; allow clearance for optical fibers). ] Weight [ Appoximately 15 lbs ] Power Rating [ 110 - 220 VAC 50 - 60 Hz ]
LFP-412_UV Complete laser flash photolysis system (Spectral Range 240-740 nm) for spectroscopic and kinetic measurements ceramic xenon light source; 125 mm monochromator; Tektronix digitizer TDS-2000 series with 50 MHz bandwidth; micro photomultiplier and power supply; computer (user's choice of desktop or laptop); cell holder and fiber optic connectors; fiber optic sensor for laser-sensing pre-trigger signal; all interfaces and software needed to operate the system. Does not include laser. [ Footprint ] LFP unit: 12¡± x 24¡± (20 cm x 61 cm) – includes xenon lamp for Transient Absorption, breadboard, sample compartment and optics. Digitizer: (15¡± x 6¡±; 38cm x 15 cm) can be placed on xenon lamp. Computer: option of desktop or laptop [ Weight ] 50 lbs/ 23 kg (approximate) [ Power Rating ] 110-240 VAC, 50/60 Hz cycle, 3 Amp [ Ambient Temperature ] Must be between 5¨¬C and 55 ¨¬C [ Humidity ] Must be between 0% and 95% (non-condensing) [ Time Response and Time Scales ] Detector: ~7 ns risetime Digitizer: 50 MHz bandwidth; 8 bit resolution; record seize: 2,500 points at all time bases; Series TDS2000 Note that the TDS2000 series has many other functions, that are not employed in the LFP systems. Short time scales: 10 ns with built-in amplifier, or 20 ns with external amplifier Long time scales: Millisecond measurements readily performed. [ Spectral Range ] User-selected at the time of order. Cannot be changed by user. UV option: 240-740 nm with standard PMT and grating [Specifications »ó¼¼ ÆÄÀÏ ÂüÁ¶]
LFP-412_RED Complete laser flash photolysis system (Spectral Range 310-850 nm) for spectroscopic and kinetic measurements Complete laser flash photolysis system for spectroscopic and kinetic measurements, including: ceramic xenon light source; 125 mm monochromator; Tektronix digitizer TDS-2000 series with 50 MHz bandwidth; micro photomultiplier and power supply; computer (user's choice of desktop or laptop); cell holder and fiber optic connectors; fiber optic sensor for laser-sensing pre-trigger signal; all interfaces and software needed to operate the system. Does not include laser. [ Footprint ] LFP unit: 12¡± x 24¡± (20 cm x 61 cm) – includes xenon lamp for Transient Absorption, breadboard, sample compartment and optics. Digitizer: (15¡± x 6¡±; 38cm x 15 cm) can be placed on xenon lamp. Computer: option of desktop or laptop [ Weight ] 50 lbs/ 23 kg (approximate) [ Power Rating ] 110-240 VAC, 50/60 Hz cycle, 3 Amp [ Ambient Temperature ] Must be between 5¨¬C and 55 ¨¬C [ Humidity ] Must be between 0% and 95% (non-condensing) [ Time Response and Time Scales ] Detector: ~7 ns risetime Digitizer: 50 MHz bandwidth; 8 bit resolution; record seize: 2,500 points at all time bases; Series TDS2000 Note that the TDS2000 series has many other functions, that are not employed in the LFP systems. Short time scales: 10 ns with built-in amplifier, or 20 ns with external amplifier Long time scales: Millisecond measurements readily performed. [ Spectral Range ] User-selected at the time of order. Cannot be changed by user. RED option: 310-850 nm with RED PMT and grating [Specifications »ó¼¼ ÆÄÀÏ ÂüÁ¶]
LFP-412_OF Complete laser flash photolysis system (Spectral Range 330-850 nm) for spectroscopic and kinetic measurements Complete laser flash photolysis system for spectroscopic and kinetic measurements, including: ceramic xenon light source; 125 mm monochromator; Tektronix digitizer TDS-2000 series with 50 MHz bandwidth; micro photomultiplier and power supply; computer (user's choice of desktop or laptop); cell holder and fiber optic connectors; fiber optic sensor for laser-sensing pre-trigger signal; all interfaces and software needed to operate the system. Does not include laser. [ Footprint ] LFP unit: 12¡± x 24¡± (20 cm x 61 cm) – includes xenon lamp for Transient Absorption, breadboard, sample compartment and optics. Digitizer: (15¡± x 6¡±; 38cm x 15 cm) can be placed on xenon lamp. Computer: option of desktop or laptop [ Weight ] 50 lbs/ 23 kg (approximate) [ Power Rating ] 110-240 VAC, 50/60 Hz cycle, 3 Amp [ Ambient Temperature ] Must be between 5¨¬C and 55 ¨¬C [ Humidity ] Must be between 0% and 95% (non-condensing) [ Time Response and Time Scales ] Detector: ~7 ns risetime Digitizer: 50 MHz bandwidth; 8 bit resolution; record seize: 2,500 points at all time bases; Series TDS2000 Note that the TDS2000 series has many other functions, that are not employed in the LFP systems. Short time scales: 10 ns with built-in amplifier, or 20 ns with external amplifier Long time scales: Millisecond measurements readily performed. [ Spectral Range ] User-selected at the time of order. Cannot be changed by user. Ozone-free option: 330-850 nm with RED PMT and grating, and ozone-free xenon lamp [Specifications »ó¼¼ ÆÄÀÏ ÂüÁ¶]
LFP-422 Patented Laser Flash Photolysis Diffuse Reflectance NEW PRICE! Laser photolysis transient diffuse reflectance spectrometer. (Spectral Range 330-850 nm) including: ceramic xenon light source; 125 mm monochromator; Tektronix digitizer TDS-2000 series with 50 MHz bandwidth; micro photomultiplier and power supply; computer (user's choice of desktop or laptop); cell holder and fiber optic connectors; fiber optic sensor for lasersensing pre-trigger signal; all interfaces and software needed to operate the system. Does not include laser. Dimensions [ LFP Diffuse Reflectance module: 12 x 18 inch footprint (includes monitoring lamp and breadboard; excludes exhaust at the back of the lamp; allow clearance for optical fibers). ] Weight [ Appoximately 15 lbs ] Power Rating [ 110 - 220 VAC 50 - 60 Hz ]
  •
  •
