LZC UV/VIS Photoreactors - LED & FluorescentLED PhotoreactorsXenon (Full Spectrum) PhotoreactorsICH Compliant PhotoreactorsComputer Controlled Photoreactors

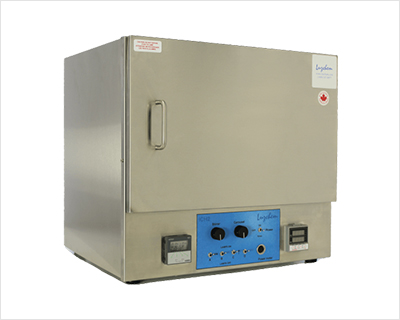

Luzchem's LZC photoreactors are closed-chamber benchtop reactors designed for use in the research or education lab.
With large, air-cooled chambers, these easy to use photoreactors are compatible with Luzchem’s UV and Visible LZC- lamps.
Compatible with Luzchem’s NEW! LZC-LED lamps available in six varieties.

Every photoreactor includes one set of safety goggles (~420 nm cut off), bulkhead connector for gases, hour meter and safety interlock.
Most reactors include a safe exhaust system (for use with UVC lamps) and are compatible with 110/220 V power.

Available with top and/or side lamps and a variety of accessories to meet most research needs.
A preferred instrument for research in photochemistry, photobiology and organic chemistry, as well as in teaching labs around the world.
검색

빠른 검색을 원하시면 오른쪽 빈칸에 직접 입력 후 검색해주세요.

전체선택
Thumbnail Catalog Description Packaging Specification
LZC-4V For Ultraviolet and Visible Lamps Top and Side Irradiation Complete Photoreactor Package Versatile and cost effective. Six top and 8 side lamps, provided with 2 complete sets of lamps. 14 UVA (350 nm) and 14 UVC (254 nm) lamps, (28 lamps total) timer, safe exhaust system, safety goggles, installed drive motor, carousel for liquid samples (“merry-go-round”), turntable for solid samples, recessed magnetic stirrer and UVA/VIS power meter. Dimensions [ External: 18" wide, 21" deep (with exhaust) and 16.5" high (46 x 53 x 42 cm) ] [ Internal: 12" wide, 12" deep and 8.5" high (30 x 30 x 22 cm) ] Power Rating [ 110 VAC/220 VAC, 50/60 Hz cycle, 3 Amps ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum alloy) ] Ambient Temperature [ Must be between 10ºC and 35ºC ] Chamber Temperature [ Maintained from 4-5ºC above room temperature upto 45ºC. ] Humidity [ Must be between 0% and 95% (non-condensing) ]
CCP-4V Ultraviolet and Visible Lamps Available Top and Side Irradiation Fully Computerized Photoreactor The latest in exposure chamber technology. Fully computerized using a USB interface. Logs exposure conditions, lamps used and time. Photoreactor accommodates 14 lamps. Includes 14 UVA and 14 UVC lamps, safe exhaust system, safety goggles, installed drive motor, carousel, turntable, recessed magnetic stirrer, bulkhead connector for gases, UV/VIS power sensor (includes UVA and UVC calibrations) & timer. Includes notebook computer with pre-installed CCP software. Dimensions [ External: 18" wide, 21" deep (with exhaust) and 16.5" high (46 x 53 x 42 cm) ] [ Internal: 12" wide, 12" deep and 8.5" high (30 x 30 x 22 cm) ] Weight [ 32 lbs. / 15 kg ] Power Rating [ 110 VAC/220 VAC, 50/60 Hz cycle, 3 Amps ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum alloy) ] Ambient Temperature [ Must be between 10ºC and 35ºC ] Chamber Temperature [ Maintained from 4-5ºC above room temperature upto 45ºC. ] Humidity [ Must be between 0% and 95% (non-condensing) ]
LZC-ICH2 For Ultraviolet and Visible Lamps Top and Side Irradiation ICH Compliance under Option 2 Certified compliant with ICH guidelines under option 2. Includes 16 UVA and 16 visible lamps. Carousel for liquids and a turntable for solid samples. Recessed magnetic stirrer. Digital timer allows for timed irradiation from a few seconds to 99 hours. UVA/VIS power meter. Bulkhead connector for gases, safety goggles and a safe exhaust system are also included. The temperature control range is from 25 to 45 Celsius. Certification includes mapping of energy distribution in the chamber. Dimensions [ External: 18" wide, 21" deep (with exhaust) and 16.5" high (46 x 53 x 42 cm) ] [ Internal: 12" wide, 12" deep and 8.5" high (30 x 30 x 22 cm) ] Weight [ Net Weight: 24 lbs. / 11 kg ] Power Rating [ 110 VAC/220 VAC, 50/60 Hz cycle, 3 Amps ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum alloy) ] Ambient Temperature [ Must be between 10ºC and 35ºC ] Chamber Temperature [ Maintained from 4-5ºC above room temperature upto 45ºC. ] Humidity [ Must be between 0% and 95% (non-condensing) ]
CCP-ICH2 Ultraviolet and Visible Lamps Available Top and Side Irradiation Computerized, ICH Compliant under Option 2 The latest in exposure chamber technology. Fully computerized using a USB interface. Logs exposure conditions, lamps used and time. Certified compliant with ICH guidelines under option 2. Photoreactor accommodates 16 lamps. Includes 16 UVA and 16 VIS lamps, safe exhaust system, safety goggles, installed drive motor, carousel, turntable, recessed magnetic stirrer, bulkhead connector for gases, UVA/VIS power sensor & timer. Includes notebook computer with pre-installed CCP software. Dimensions [ External: 18" wide, 21" deep (with exhaust) and 16.5" high (46 x 53 x 42 cm) ] [ Internal: 12" wide, 12" deep and 8.5" high (30 x 30 x 22 cm) ] Weight [ 36 lbs / 16 kgs ] Power Rating [ 110 VAC, 60 Hz cycle, 3 Amps or 220 VAC, 50 Hz cycle, 3 Amps ] [ Purchaser must designate 110 or 220 VAC at time of purchase. ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum alloy) ] Ambient Temperature [ Must be between 10ºC and 35ºC ] Chamber Temperature [ Temperature Control standard in the range of 4-5°C above room temperature up to 45°C ] Humidity [ Must be between 0% and 95% (non-condensing) ]
LZC-4X For Ultraviolet and Visible Lamps Top and Side Irradiation Photoreactor Package Versatile and cost effective. Six top and 8 side lamps, provided with 2 complete sets of lamps. 14 UVA (350 nm) and 14 UVC (254 nm) lamps, (28 lamps total) safe exhaust system, safety goggles, portable carousel for liquid samples (“merry-go-round”), portable turntable for solid samples, recessed magnetic stirrer and UVA/VIS power meter. Dimensions [ External: 18" wide, 21" deep (with exhaust) and 16.5" high (46 x 53 x 42 cm) ] [ Internal: 12" wide, 12" deep and 8.5" high (30 x 30 x 22 cm) ] Power Rating [ 110 VAC/220 VAC, 50/60 Hz cycle, 3 Amps ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum alloy) ] Ambient Temperature [ Must be between 10ºC and 35ºC ] Chamber Temperature [ Maintained to 4-5ºC above room temperature ] Humidity [ Must be between 0% and 95% (non-condensing) ]
LZC-ORG UV and Visible Lamps Side Irradiation Organic Chemistry Package For organic photochemists requiring only side irradiation. Based on our LZC-5 model. We have added 2 extra lamps, a recessed magnetic stirrer, and a digital timer. Also includes a 16- tube portable carousel and 8 quartz and 8 Pyrex tubes. The package includes 10 UVA and 10 UVC lamps, bulkhead connector for gases, safety goggles and a safe exhaust system. Dimensions [ External: 18" wide, 21" deep and 16.5" high (46 x 53 x 42 cm) ] [ Internal: 12" wide, 12" deep and 8.5" high (30 x 30 x 22 cm) ] Weight [ Net Weight: 24 lbs. / 11 kg ] Power Rating [ 110 VAC/220 VAC, 50/60 Hz cycle, 3 Amps ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum alloy) ] Ambient Temperature [ Must be between 10ºC and 35ºC ] Chamber Temperature [ Maintained to 4-5ºC above room temperature ] Humidity [ Must be between 0% and 95% (non-condensing) ]
LZC-EDU For Ultraviolet and Visible Lamps Top and Side Irradiation Educational Photoreactor Package Educational photoreactor housing 10 lamps (6 on the sides and 4 on top), supplied with 10 UVA lamps, portable carousel for 16 Pyrex or Quartz tubes (not included), timer and 7 experiments designed for an undergraduate laboratory. Dimensions [ External: 18" wide, 21" deep and 16.5" high (46 x 53 x 42 cm) ] [ Internal: 12" wide, 12" deep and 8.5" high (30 x 30 x 22 cm) ] Weight [ Net Weight: 24 lbs. / 11 kg ] Power Rating [ 110 VAC/220 VAC, 50/60 Hz cycle, 3 Amps ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum alloy) ] Ambient Temperature [ Must be between 10ºC and 35ºC ] Chamber Temperature [ Maintained to 4-5ºC above room temperature ] Humidity [ Must be between 0% and 95% (non-condensing) ]
EXPO-01 Exposure panels offer a new dimension in ultraviolet and visible exposure tools. Exposure panels offer a new dimension in ultraviolet and visible exposure tools. Each expo panel houses 5 LZC-series lamps (fluorescent or LZC-LED) providing an emissive area of approximately 7 x 12 inches. Can be configured in a variety of ways. Lamps, posts and other hardware not included. Not compatible with LED-series lamps. Compatible with LZC-LED lamps! Dimensions [ External: 8" wide, 16" long and 3" thick (20 x 40 x 8 cm) ] [ Emissive area: approximately 7" x 12" ] Weight [ 6.5 lbs. / 3 kg ] Power Rating [ 110/220 VAC, 50/60 Hz cycle, 1 Amp ] [ Ships with North American-style power cable ] Humidity [ Must be between 0% and 95% (non-condensing) ]
LZC-4 Basic Photoreactor Systems - 14 Lamp configuration designed for top and side irradiation. safe exhaust, safety interlock, one pair safety goggles. (Lamps not included) Dimensions [ External: 18" wide, 21" deep and 16.5" high (46 x 53 x 42 cm) ] [ Internal: 12" wide, 12" deep and 8.5" high (30 x 30 x 22 cm) ] Weight [ Net Weight: 24 lbs. / 11 kg ] Power Rating [ 110 VAC/220 VAC, 50/60 Hz cycle, 3 Amps ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum alloy) ] Ambient Temperature [ Must be between 10ºC and 35ºC ] Chamber Temperature [ Maintained to 4-5ºC above room temperature ] Humidity [ Must be between 0% and 95% (non-condensing) ]
LZC-1 Basic Photoreactor Systems - 8 Lamps configured for top irradiation only. Ideal for solid samples, Petri dishes and lithographic applications. safe exhaust, safety interlock, one pair safety goggles. (Lamps not included.) Dimensions [ External: 18" wide, 21" deep and 16.5" high (46 x 53 x 42 cm) ] [ Internal: 12" wide, 12" deep and 8.5" high (30 x 30 x 22 cm) ] Weight [ Net Weight: 24 lbs. / 11 kg ] Power Rating [ 110 VAC/220 VAC, 50/60 Hz cycle, 3 Amps ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum alloy) ] Ambient Temperature [ Must be between 10ºC and 35ºC ] Chamber Temperature [ Maintained to 4-5ºC above room temperature ] Humidity [ Must be between 0% and 95% (non-condensing) ]
