LZC UV/VIS Photoreactors - LED & FluorescentLED PhotoreactorsXenon (Full Spectrum) PhotoreactorsICH Compliant PhotoreactorsComputer Controlled Photoreactors
Luzchem's LED exposure tools allow photochemists and photobiologists to work with their choice of broad or narrowband visible dimmable light sources.
Choose from a variety of broadband white LEDs or from our selection of narrowband blue, green, yellow and red LEDs.
Luzchem's EXPO-LED panel is a simple but versatile exposure tool that can be used individually with small samples or, multiple panels can be combined to create custom experimental designs.

The LED-L16 photoreactor is a complete benchtop package. Plug it in, install the lamps of your choice and put your research project in motion.
Looking for an LED chamber not found on this page, Luzchem can customize one based on one of our LZC-line photoreactors for you. Contact us!
검색

빠른 검색을 원하시면 오른쪽 빈칸에 직접 입력 후 검색해주세요.

전체선택
Thumbnail Catalog Description Packaging Specification

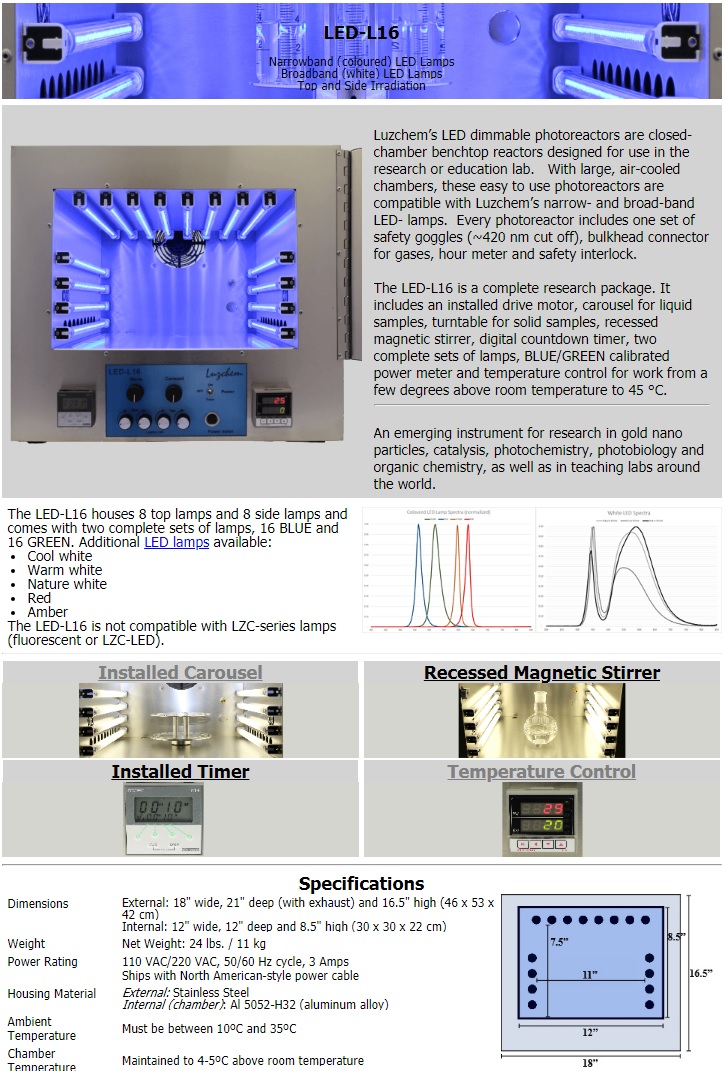

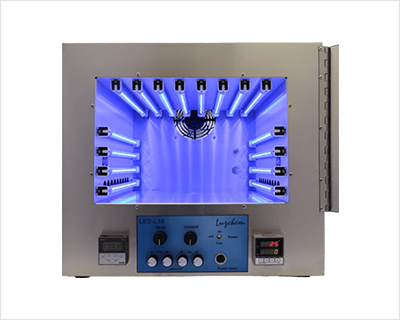

LED-L16 Narrowband (coloured) LED Lamps Broadband (white) LED Lamps Top and Side Irradiation 16 LED lamp photoreactor; Includes 16 BLUE and 16 GREEN LED lamps, carousel for liquids, a turntable for solid samples, recessed magnetic stirrer, digital timer, BLUE/GREEN power meter, bulkhead connector for gases and safety goggles. Variable lamp intensity. Temperature control from 25 to 45 Celsius. NOT compatible with LZC- series lamps. Dimensions [ External: 18" wide, 21" deep (with exhaust) and 16.5" high (46 x 53 x 42 cm) ] [ Internal: 12" wide, 12" deep and 8.5" high (30 x 30 x 22 cm) ] Weight [ Net Weight: 24 lbs. / 11 kg ] Power Rating [ 110 VAC/220 VAC, 50/60 Hz cycle, 3 Amps ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum alloy) ] Ambient Temperature [ Must be between 10ºC and 35ºC ] Chamber Temperature [ Maintained to 4-5ºC above room temperature ] Humidity [ Must be between 0% and 95% (non-condensing) ]

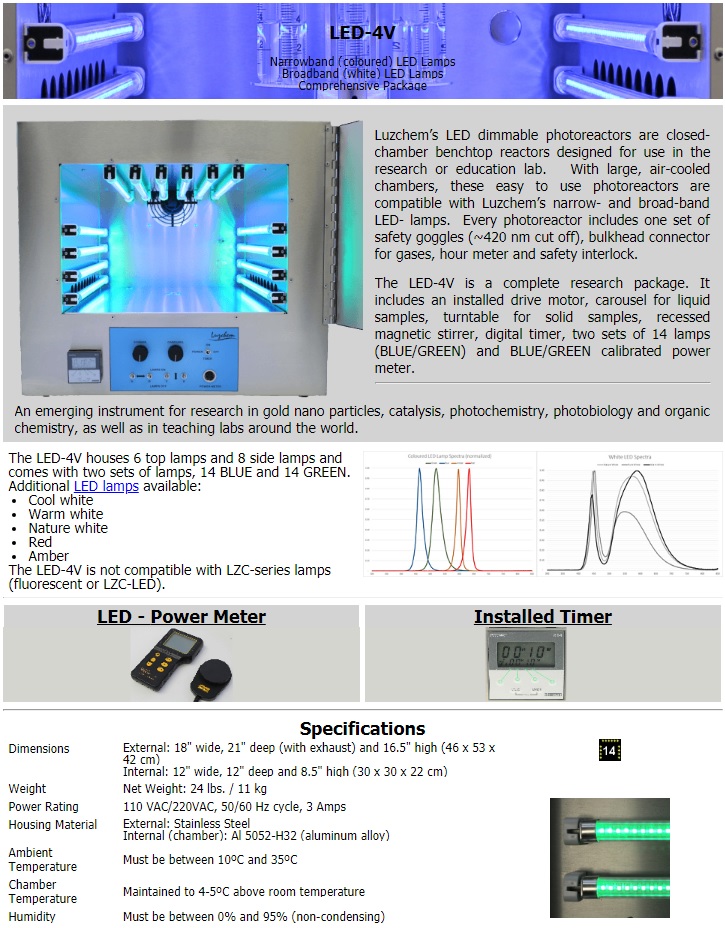

LED-4V Narrowband (coloured) LED Lamps Broadband (white) LED Lamps Comprehensive Package 14 LED lamp photoreactor; Includes 14 BLUE and 14 GREEN LED lamps, carousel for liquids, a turntable for solid samples, recessed magnetic stirrer, digital timer, BLUE/GREEN power meter, bulkhead connector for gases and safety goggles. Variable lamp intensity. NOT compatible with LZC- series lamps. Dimensions [ External: 18" wide, 21" deep (with exhaust) and 16.5" high (46 x 53 x 42 cm) ] [ Internal: 12" wide, 12" deep and 8.5" high (30 x 30 x 22 cm) ] Weight [ Net Weight: 24 lbs. / 11 kg ] Power Rating [ 110 VAC/220VAC, 50/60 Hz cycle, 3 Amps] [ Housing Material ] [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum alloy) ] Ambient Temperature [ Must be between 10ºC and 35ºC ] Chamber Temperature [ Maintained to 4-5ºC above room temperature ] Humidity [ Must be between 0% and 95% (non-condensing) ]

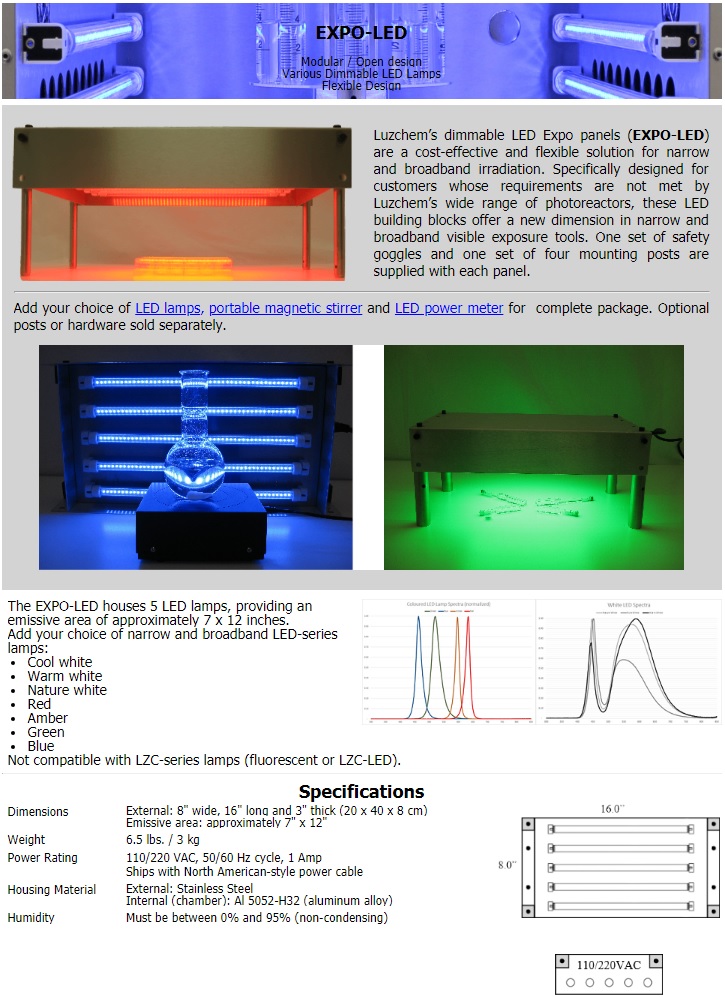

EXPO-LED Luzchem’s dimmable LED Expo panels LED Exposure panels are a visible exposure tool which take advantage of LED technology to offer variable intensity and narrow bandwidth emission (FWHM est. 20 nm). Each expo panel (8 x 16 x 3 inches) can accommodate five T5 12-inch LED lamp tubes providing an emissive area of approximately 7 x 12 inches. LAMPS NOT INCLUDED. Compatible with LED-series lamps. Not compatible with fluorescent or LZC-LED lamps. Dimensions [ External: 8" wide, 16" long and 3" thick (20 x 40 x 8 cm) ] [ Emissive area: approximately 7" x 12" ] Weight [ 6.5 lbs. / 3 kg ] Power Rating [ 110/220 VAC, 50/60 Hz cycle, 1 Amp ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum alloy) ] Humidity [ Must be between 0% and 95% (non-condensing) ]
  •
  •
