Luzchem has developed the latest in exposure chamber technology.

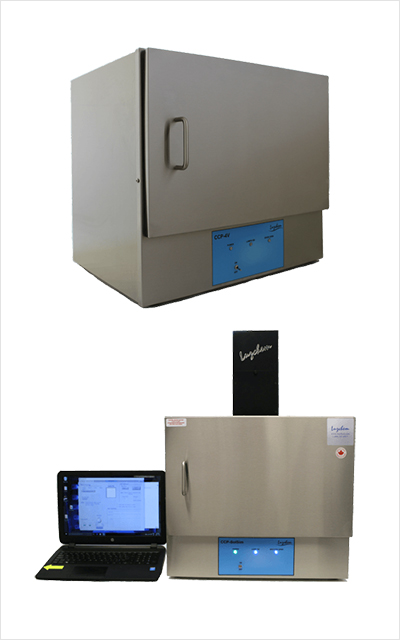

Our new computer controlled photoreactors (CCP-4V and CCP-ICH2) are fully computerized using a USB interface.
These photoreactors will automatically log exposure conditions and optics used. New integrated power sensor will also log the intensity of the light output.

Ideal for pharmaceutical testing and any other industry with stringent documentation requirements.

Note: Any 12" Rayonet lamps can be used in Luzchem photoreactors
°Ë»ö
Àüü¼±ÅÃ
Thumbnail Catalog Description Packaging Specification

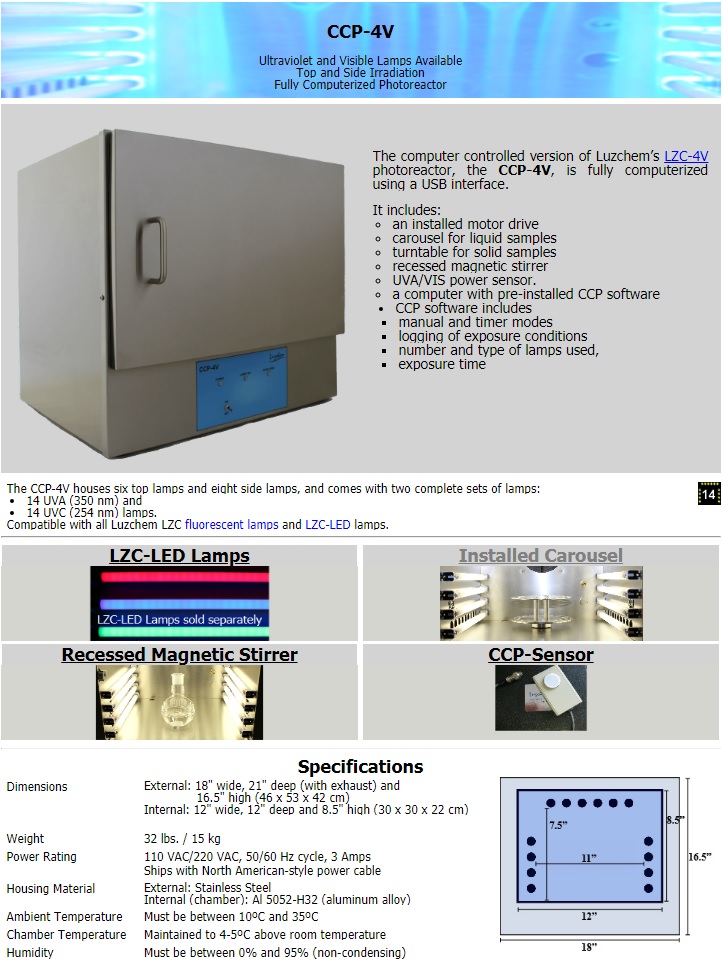

CCP-4V Ultraviolet and Visible Lamps Available Top and Side Irradiation Fully Computerized Photoreactor The latest in exposure chamber technology. Fully computerized using a USB interface. Logs exposure conditions, lamps used and time. Photoreactor accommodates 14 lamps. Includes 14 UVA and 14 UVC lamps, safe exhaust system, safety goggles, installed drive motor, carousel, turntable, recessed magnetic stirrer, bulkhead connector for gases, UV/VIS power sensor (includes UVA and UVC calibrations) & timer. Includes notebook computer with pre-installed CCP software. Dimensions [ External: 18" wide, 21" deep (with exhaust) and 16.5" high (46 x 53 x 42 cm) ] [ Internal: 12" wide, 12" deep and 8.5" high (30 x 30 x 22 cm) ] Weight [ 32 lbs. / 15 kg ] Power Rating [ 110 VAC/220 VAC, 50/60 Hz cycle, 3 Amps ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum alloy) ] Ambient Temperature [ Must be between 10¨¬C and 35¨¬C ] Chamber Temperature [ Maintained to 4-5¨¬C above room temperature ] Humidity [ Must be between 0% and 95% (non-condensing) ]

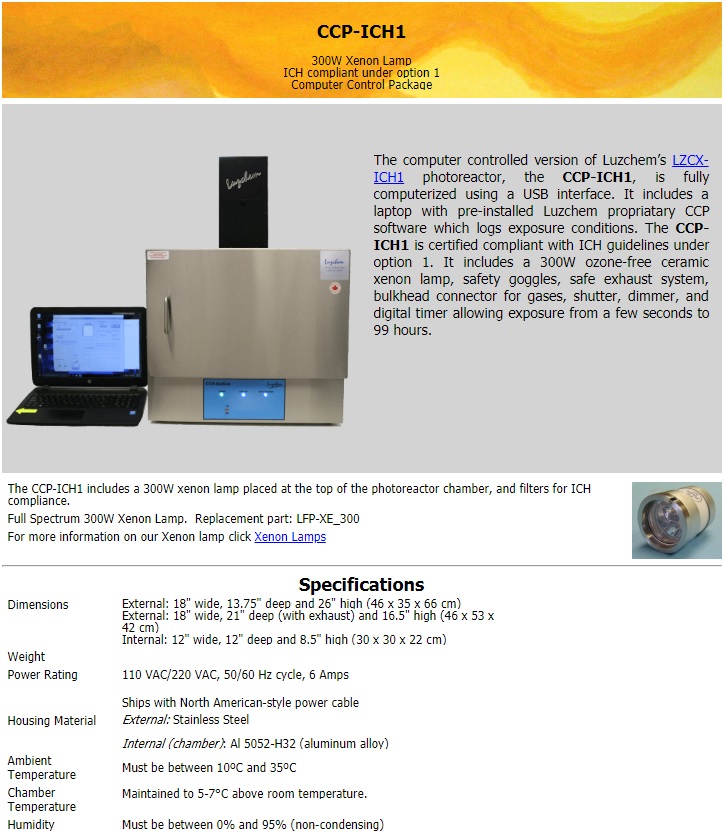

CCP-ICH1 300W Xenon Lamp ICH compliant under option 1 Computer Control Package The latest in exposure chamber technology. Fully computerized using a USB interface. Logs exposure conditions. Certified compliant with ICH guidelines under option 1. Xenon photoreactor includes 300W ozone-free ceramic xenon lamp, safety goggles, safe exhaust system, bulkhead connector for gases, shutter, dimmer and digital timer allowing exposure from a few seconds to 99 hours. Includes notebook computer with pre-installed CCP software. Dimensions [ External: 18" wide, 13.75" deep and 26" high (46 x 35 x 66 cm) ] [ External: 18" wide, 21" deep (with exhaust) and 16.5" high (46 x 53 x 42 cm) ] [ Internal: 12" wide, 12" deep and 8.5" high (30 x 30 x 22 cm) ] Power Rating [ 110 VAC/220 VAC, 50/60 Hz cycle, 6 Amps ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum alloy) ] Ambient Temperature [ Must be between 10¨¬C and 35¨¬C ] Chamber Temperature [ Maintained to 5-7¡ÆC above room temperature. ] Humidity [ ust be between 0% and 95% (non-condensing) ]

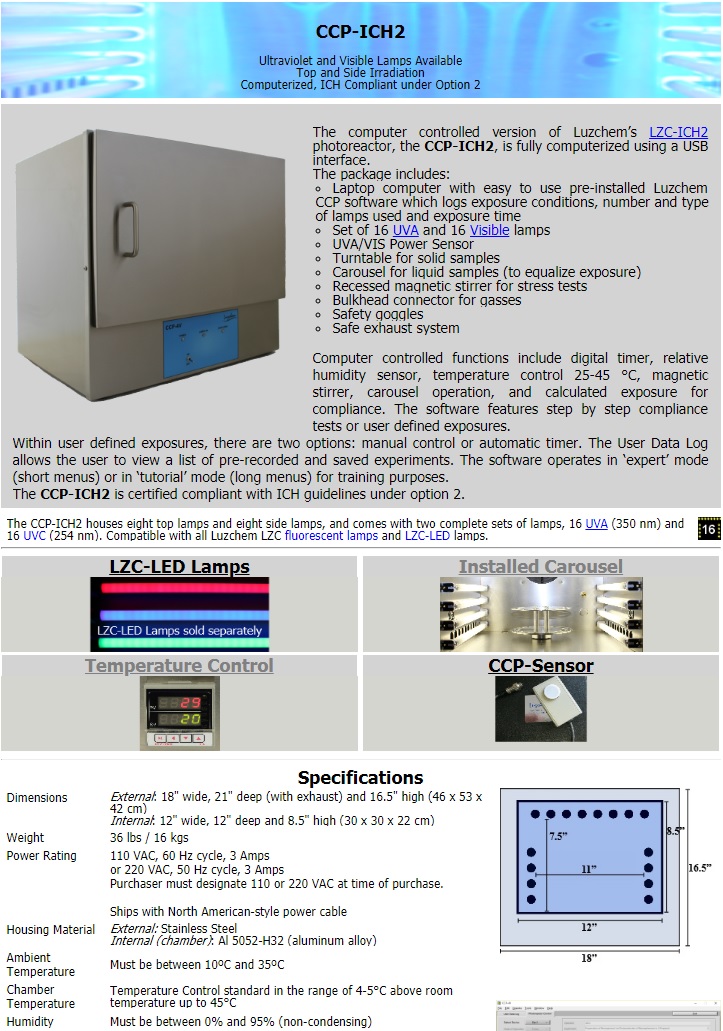

CCP-ICH2 Ultraviolet and Visible Lamps Available Top and Side Irradiation Computerized, ICH Compliant under Option 2 The latest in exposure chamber technology. Fully computerized using a USB interface. Logs exposure conditions, lamps used and time. Certified compliant with ICH guidelines under option 2. Photoreactor accommodates 16 lamps. Includes 16 UVA and 16 VIS lamps, safe exhaust system, safety goggles, installed drive motor, carousel, turntable, recessed magnetic stirrer, bulkhead connector for gases, UVA/VIS power sensor & timer. Includes notebook computer with pre-installed CCP software. Dimensions [ External: 18" wide, 21" deep (with exhaust) and 16.5" high (46 x 53 x 42 cm) ] [ Internal: 12" wide, 12" deep and 8.5" high (30 x 30 x 22 cm) ] Weight [ 36 lbs / 16 kgs ] Power Rating [ 110 VAC, 60 Hz cycle, 3 Amps or 220 VAC, 50 Hz cycle, 3 Amps ] [ Purchaser must designate 110 or 220 VAC at time of purchase. ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum alloy) ] Ambient Temperature [ Must be between 10¨¬C and 35¨¬C ] Chamber Temperature [ Temperature Control standard in the range of 4-5¡ÆC above room temperature up to 45¡ÆC ] Humidity [ Must be between 0% and 95% (non-condensing) ]

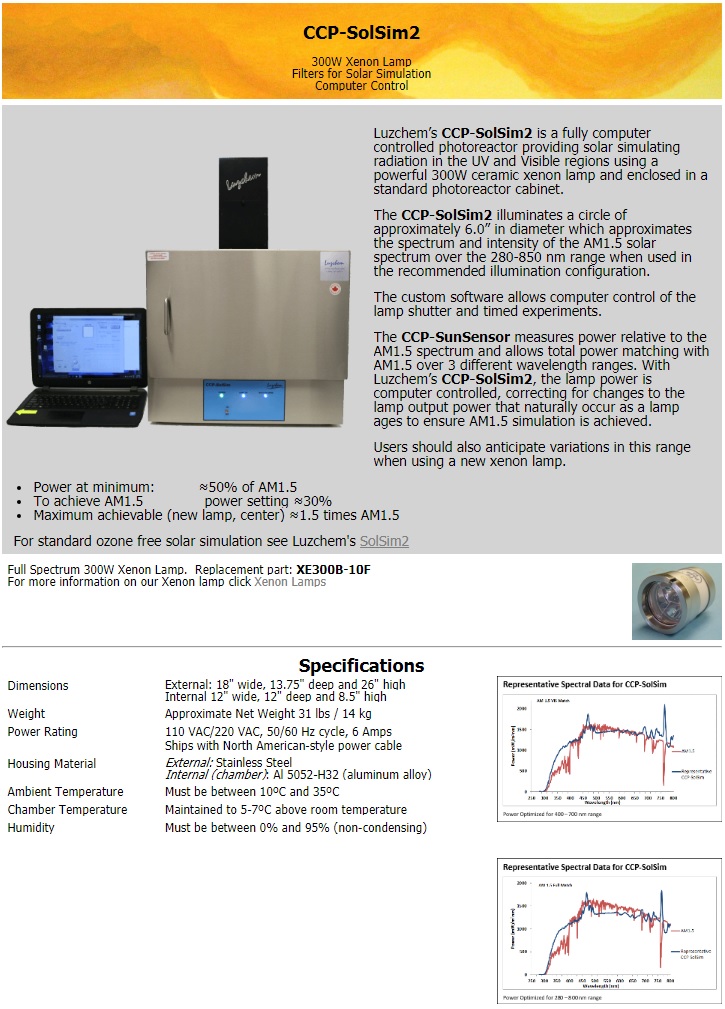

CCP-SolSim2 300W Xenon Lamp Filters for Solar Simulation Computer Control Fully computerized using USB interface. Software logs exposure time. Solar Simulator reproduces AM1.5 solar spectrum from 310-800 nm. Includes 300 W ozone-free xenon lamp, shutter, countdown timer, variable power and filters for solar simulation. Bulkhead connector for gases, safety goggles and safe exhaust included. Sun meter/power sensor calibrated for AM1.5 matching and solar spectral data included. Includes notebook computer with pre-installed CCP software. Dimensions [ External: 18" wide, 13.75" deep and 26" high ] [ Internal 12" wide, 12" deep and 8.5" high ] Weight [ Approximate Net Weight 31 lbs / 14 kg ] Power Rating [ 110 VAC/220 VAC, 50/60 Hz cycle, 6 Amps ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum alloy) ] Ambient Temperature [ Must be between 10¨¬C and 35¨¬C ] Chamber Temperature [ Maintained to 5-7¨¬C above room temperature ] Humidity [ Must be between 0% and 95% (non-condensing) ]
  •
  •
