LZC UV/VIS Photoreactors - LED & FluorescentLED PhotoreactorsXenon (Full Spectrum) PhotoreactorsICH Compliant PhotoreactorsComputer Controlled Photoreactors

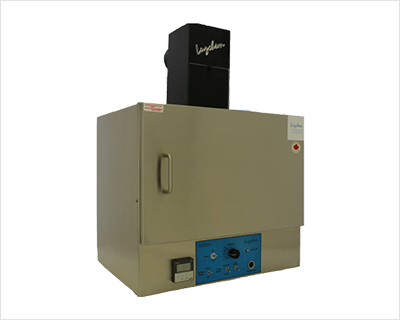

Luzchem's 300W Xenon photoreactors are closed-chamber benchtop reactors designed for use in the research or education lab. With large, air-cooled chambers, these easy to use photoreactors are compatible with Luzchem’s Xenon lamps.
Every photoreactor includes one set of safety goggles (~420 nm cut off), bulkhead connector for gases, hour meter and safety interlock. Most reactors include a safe exhaust system (for use with full UV Xenon lamps) and are compatible with 110/220 V power.

A preferred instrument for research in photochemistry, photobiology and organic chemistry, as well as in teaching labs around the world.
검색

빠른 검색을 원하시면 오른쪽 빈칸에 직접 입력 후 검색해주세요.

전체선택
Thumbnail Catalog Description Packaging Specification

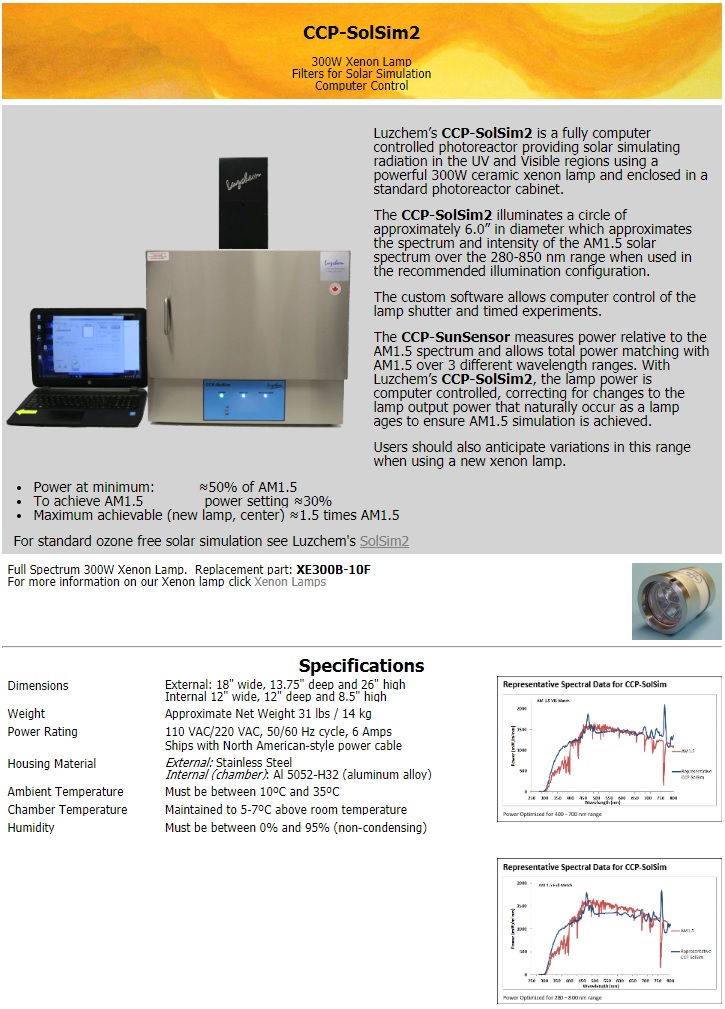

CCP-SolSim2 300W Xenon Lamp Filters for Solar Simulation Computer Control Fully computerized using USB interface. Software logs exposure time. Solar Simulator reproduces AM1.5 solar spectrum from 310-800 nm. Includes 300 W ozone-free xenon lamp, shutter, countdown timer, variable power and filters for solar simulation. Bulkhead connector for gases, safety goggles and safe exhaust included. Sun meter/power sensor calibrated for AM1.5 matching and solar spectral data included. Includes notebook computer with pre-installed CCP software. Dimensions [ External: 18" wide, 13.75" deep and 26" high ] [ Internal 12" wide, 12" deep and 8.5" high ] Weight [ Approximate Net Weight 31 lbs / 14 kg ] Power Rating [ 110 VAC/220 VAC, 50/60 Hz cycle, 6 Amps ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum alloy) ] Ambient Temperature [ Must be between 10ºC and 35ºC ] Chamber Temperature [ Maintained to 5-7ºC above room temperature ] Humidity [ Must be between 0% and 95% (non-condensing) ]

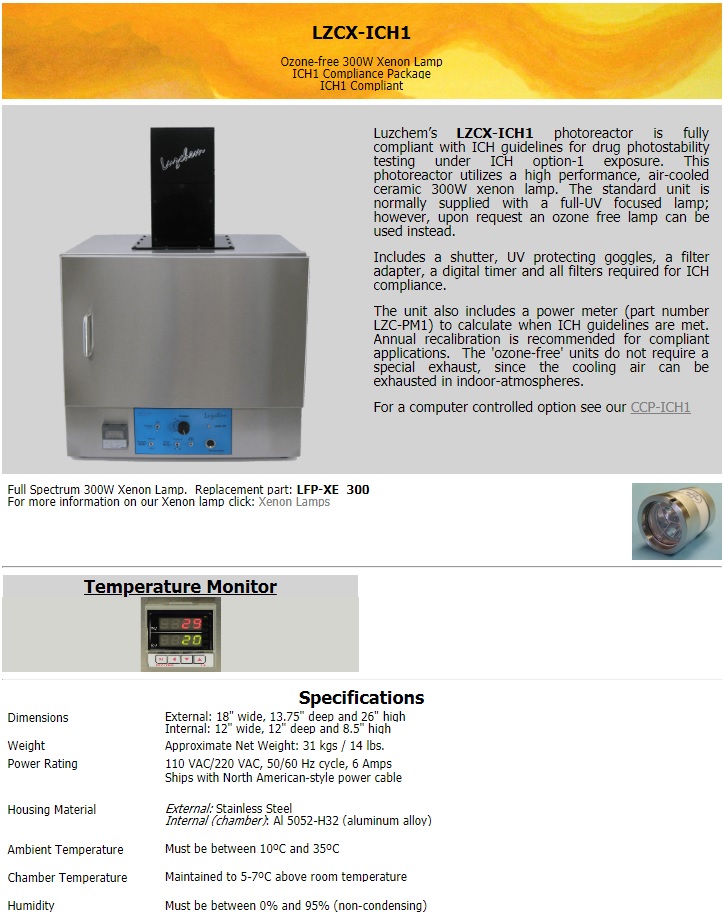

LZCX-ICH1 Ozone-free 300W Xenon Lamp ICH1 Compliance Package ICH1 Compliant Certified compliant with ICH guidelines option 1 (includes filters required for ICH compliance). Xenon photoreactor includes ozone-free 300W ceramic xenon lamp, shutter, dimmer, digital timer, bulkhead connector for gases, safety goggles and a safe exhaust system included. Certification includes mapping of energy distribution in the chamber. Dimensions [ External: 18" wide, 13.75" deep and 26" high ] [ Internal: 12" wide, 12" deep and 8.5" high ] Weight [ Approximate Net Weight: 31 kgs / 14 lbs. ] Power Rating [ 110 VAC/220 VAC, 50/60 Hz cycle, 6 Amps ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum alloy) ] Ambient Temperature [ Must be between 10ºC and 35ºC ] Chamber Temperature [ Maintained to 5-7ºC above room temperature ] Humidity [ Must be between 0% and 95% (non-condensing) ]

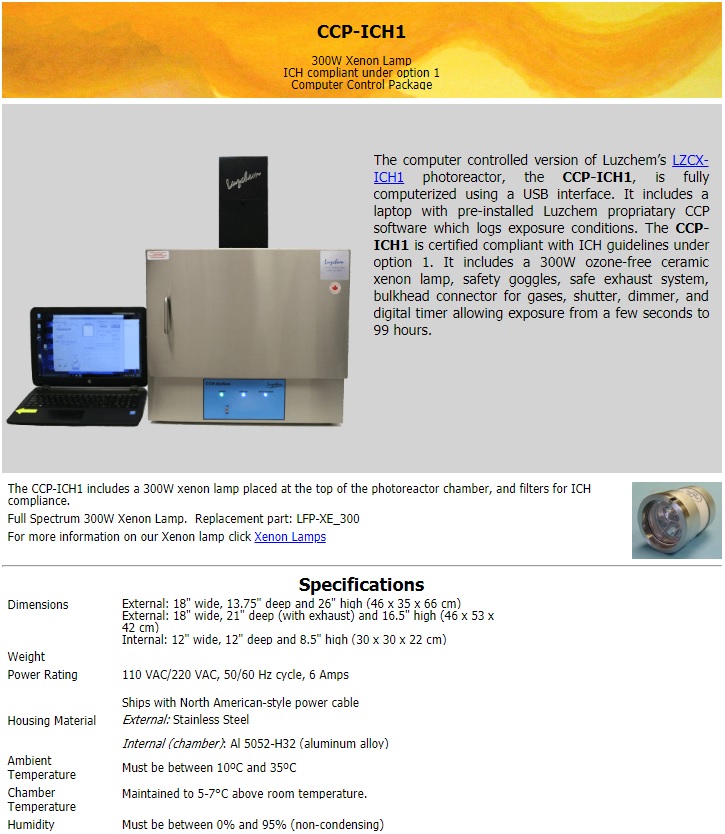

CCP-ICH1 300W Xenon Lamp ICH compliant under option 1 Computer Control Package The latest in exposure chamber technology. Fully computerized using a USB interface. Logs exposure conditions. Certified compliant with ICH guidelines under option 1. Xenon photoreactor includes 300W ozone-free ceramic xenon lamp, safety goggles, safe exhaust system, bulkhead connector for gases, shutter, dimmer and digital timer allowing exposure from a few seconds to 99 hours. Includes notebook computer with pre-installed CCP software. Dimensions [ External: 18" wide, 13.75" deep and 26" high (46 x 35 x 66 cm) ] [ External: 18" wide, 21" deep (with exhaust) and 16.5" high (46 x 53 x 42 cm) ] [ Internal: 12" wide, 12" deep and 8.5" high (30 x 30 x 22 cm) ] Power Rating [ 110 VAC/220 VAC, 50/60 Hz cycle, 6 Amps ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum alloy) ] Ambient Temperature [ Must be between 10ºC and 35ºC ] Chamber Temperature [ Maintained to 5-7°C above room temperature. ] Humidity [ Must be between 0% and 95% (non-condensing) ]

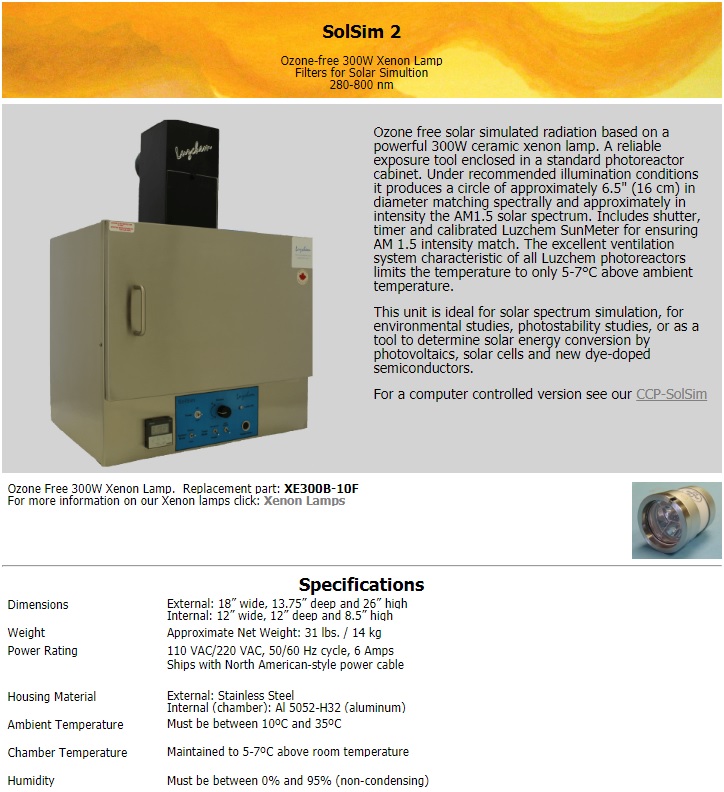

SolSim 2 Ozone Free Solar Simulator reproduces AM1.5 solar spectrum from 310-800 nm Ozone Free Solar Simulator reproduces AM1.5 solar spectrum from 310-800 nm. Includes ozone-free 300 W xenon lamp, shutter, digital timer, variable power, filters for solar simulation, bulkhead connector for gases, safety goggles and safe exhaust. Sunmeter calibrated for AM1.5 matching and solar spectral data included. Dimensions [ External: 18” wide, 13.75” deep and 26” high ] [ Internal: 12” wide, 12” deep and 8.5” high ] Weight [ Approximate Net Weight: 31 lbs. / 14 kg ] Power Rating [ 110 VAC/220 VAC, 50/60 Hz cycle, 6 Amps ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum) ] Ambient Temperature [ Must be between 10ºC and 35ºC ] Chamber Temperature [ Maintained to 5-7ºC above room temperature ] Humidity [ Must be between 0% and 95% (non-condensing) ]

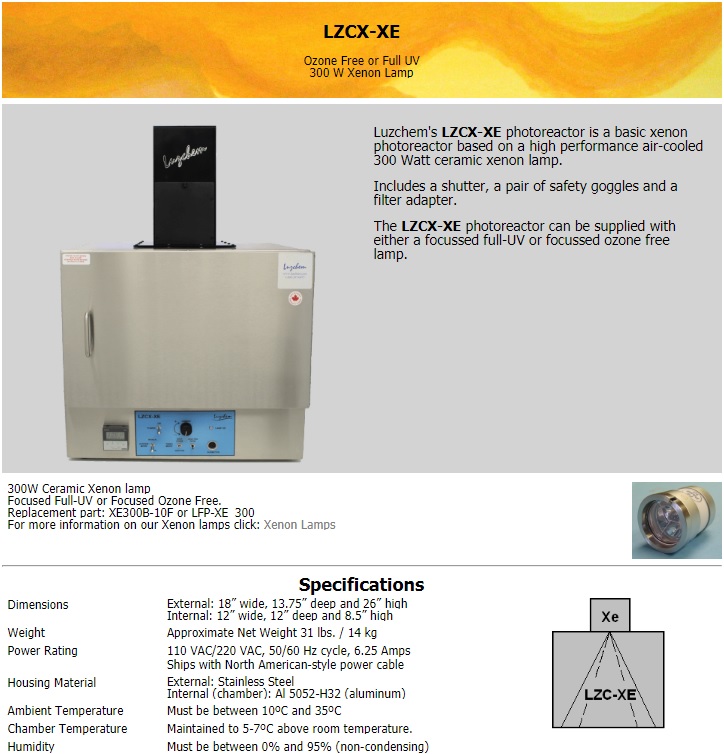

LZCX-XE Ozone-free ceramic xenon (300W) photoreactor Ozone-free ceramic xenon (300W) photoreactor, includes shutter, 2" round filter adapter (filter holder and filters sold seperately) and digital timer allowing exposure from a few seconds to 99 hours. Bulkhead connector for gases, safety goggles and safe exhaust system included. Dimensions [ External: 18” wide, 13.75” deep and 26” high ] [ Internal: 12” wide, 12” deep and 8.5” high ] Weight [ Approximate Net Weight 31 lbs. / 14 kg ] Power Rating [ 110 VAC/220 VAC, 50/60 Hz cycle, 6.25 Amps ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum) ] Ambient Temperature [ Must be between 10ºC and 35ºC ] Chamber Temperature [ Maintained to 5-7ºC above room temperature. ] Humidity [ Must be between 0% and 95% (non-condensing) ]

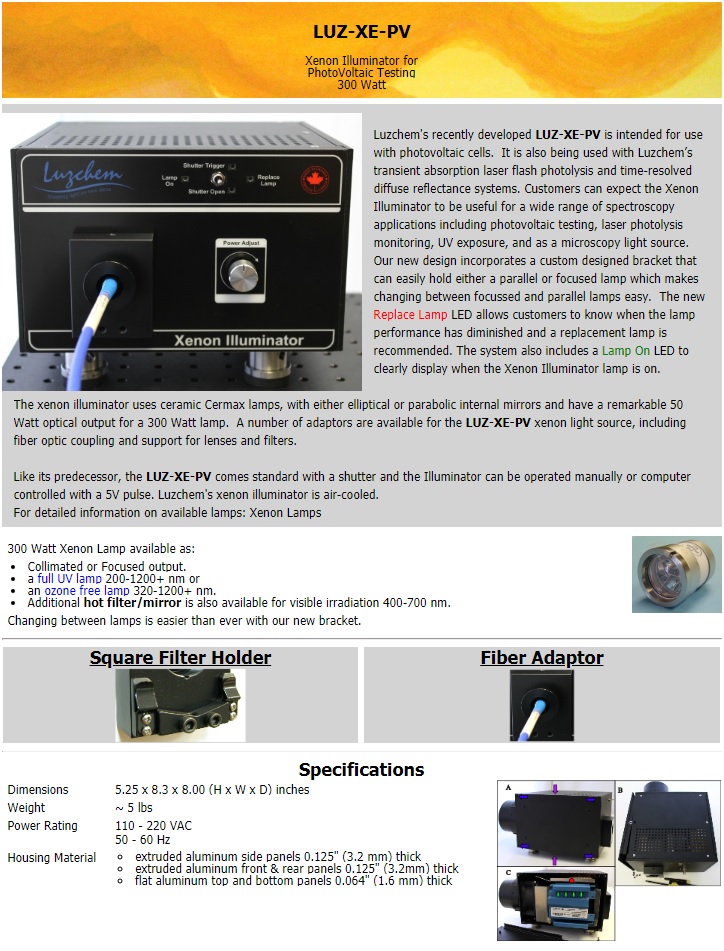

LUZ-XE-PV Xenon Illuminator for PhotoVoltaic Testing 300 Watt Xenon illuminator available for any of the 300 Watt xenon lamps shown in our catalogue. This product comes with an output block which contains Thorlabs compatible inside thread. Includes a built in shutter that can be operated manually of computer controlled with a 5V pulse. Comes with focused ozone free UV lamp (310 nm +) installed unless otherwise requested. Dimensions [ 5.25 x 8.3 x 8.00 (H x W x D) inches ] Weight [ ~ 5 lbs ] Power Rating [ 110 - 220 VAC 50 - 60 Hz ] Housing Material [ extruded aluminum side panels 0.125" (3.2 mm) thick ] [ extruded aluminum front & rear panels 0.125" (3.2mm) thick ] [ flat aluminum top and bottom panels 0.064" (1.6 mm) thick ]
  •
  •
