Luzchem's LZC photoreactors are closed-chamber benchtop reactors designed for use in the research or education lab.
With large, air-cooled chambers, these easy to use photoreactors are compatible with Luzchem¡¯s UV and Visible LZC- lamps.
Compatible with Luzchem¡¯s NEW! LZC-LED lamps available in six varieties.

Every photoreactor includes one set of safety goggles (~420 nm cut off), bulkhead connector for gases, hour meter and safety interlock.
Most reactors include a safe exhaust system (for use with UVC lamps) and are compatible with 110/220 V power.

Available with top and/or side lamps and a variety of accessories to meet most research needs.
A preferred instrument for research in photochemistry, photobiology and organic chemistry, as well as in teaching labs around the world.
°Ë»ö
Àüü¼±ÅÃ
Thumbnail Catalog Description Packaging Specification
LZC-1 Basic Photoreactor Systems - 8 Lamps configured for top irradiation only. Ideal for solid samples, Petri dishes and lithographic applications. safe exhaust, safety interlock, one pair safety goggles. (Lamps not included.) Dimensions [ External: 18" wide, 21" deep and 16.5" high (46 x 53 x 42 cm) ] [ Internal: 12" wide, 12" deep and 8.5" high (30 x 30 x 22 cm) ] Weight [ Net Weight: 24 lbs. / 11 kg ] Power Rating [ 110 VAC/220 VAC, 50/60 Hz cycle, 3 Amps ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum alloy) ] Ambient Temperature [ Must be between 10¨¬C and 35¨¬C ] Chamber Temperature [ Maintained to 4-5¨¬C above room temperature ] Humidity [ Must be between 0% and 95% (non-condensing) ]

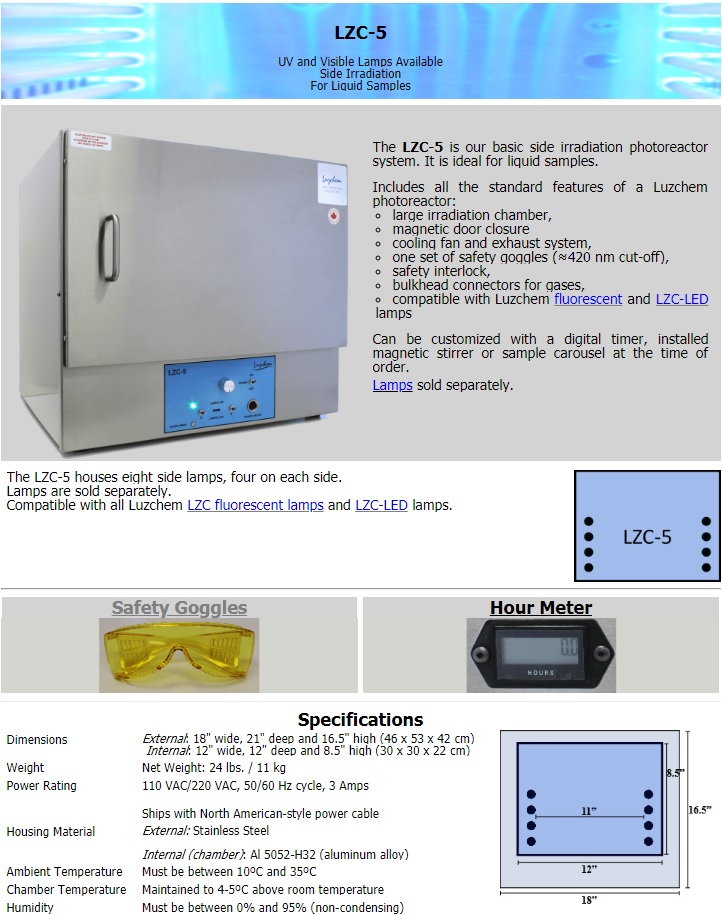

LZC-5 Basic Photoreactor Systems - 8 Lamps configured for side irradiation only. Ideal for liquid samples. safe exhaust, safety interlock, one pair safety goggles. (Lamps not included) Dimensions [ External: 18" wide, 21" deep and 16.5" high (46 x 53 x 42 cm) ] [ Internal: 12" wide, 12" deep and 8.5" high (30 x 30 x 22 cm) ] Weight [ Net Weight: 24 lbs. / 11 kg ] Power Rating [ 110 VAC/220 VAC, 50/60 Hz cycle, 3 Amps ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum alloy) ] Ambient Temperature [ Must be between 10¨¬C and 35¨¬C ] Chamber Temperature [ Maintained to 4-5¨¬C above room temperature ] Humidity [ Must be between 0% and 95% (non-condensing) ]
