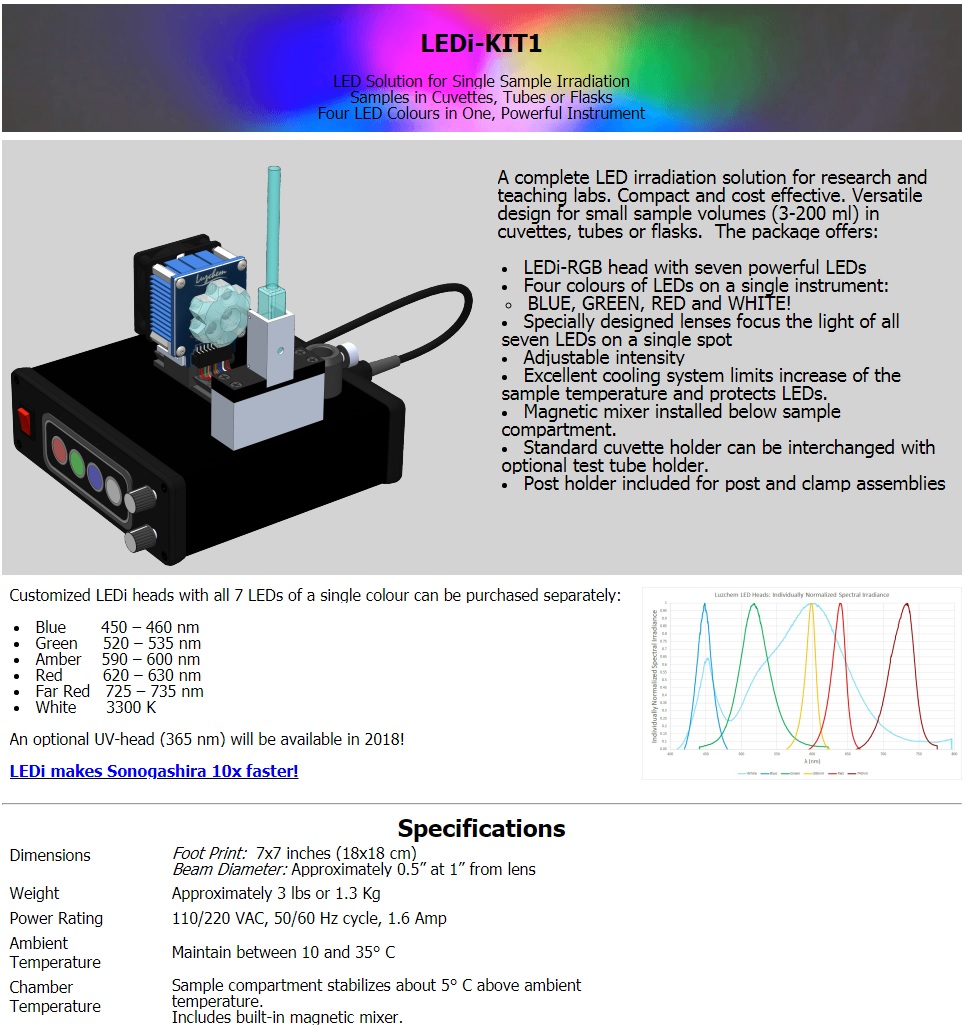

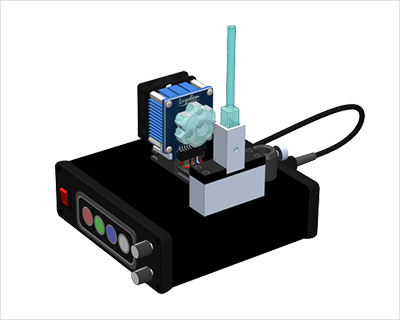

Luzchem's LED-Illuminator, is a compact LED illumination system for irradiating samples from 3-200 ml in size.
Features a unique 7-LED design with lenses that focuses all seven LEDs on one spot! LEDi-KIT includes Luzchem's standard RGB head, comprised of two red, two green, two blue and one white LED.
Or, choose from our broad range of high-powered single-coloured LEDi-Heads.

LEDi-Heads are mounted on a rail and can be used facing the standard cuvette holder with magnetic mixer, the optional Luzchem P-tube holder, or a stand-alone magnetic stirrer.

LEDi irradiation systems feature:
Seven LED's on each head
Specialized lenses focus all LEDs on a single spot
Your choice of RGB or high-powered single-colour LEDi-heads
Variable intensity
Excellent heat management at the LEDs means stable sample temperature
RGB head

Sample holder:
Magnetic mixing of sample with rare-earth magnet stir bar included
Standard cuvette holder; Optional Luzchem P-tube holder with NMR tube adapter
Standard post-holder accepts half-inch post-and-clamp assemblies
Stand-alone magnetic stirrer for larger samples available from Luzchem
°Ë»ö
Àüü¼±ÅÃ
Thumbnail Catalog Description Packaging Specification
LEDi-KIT1 LED Illuminator Package 1 LEDi-Base, LEDi-RGB; one rare earth magnet stir bar, LED safety goggles. Dimensions [ Foot Print: 7x7 inches (18x18 cm) ] [ Beam Diameter: Approximately 0.5¡± at 1¡± from lens ] Weight [ Approximately 3 lbs or 1.3 Kg ] Power Rating [ 110/220 VAC, 50/60 Hz cycle, 1.6 Amp ] Ambient Temperature [ Maintain between 10 and 35¡Æ C ] Chamber Temperature [ Sample compartment stabilizes about 5¡Æ C above ambient temperature. ] [ Includes built-in magnetic mixer. ]
LEDi-KIT1 LED Illuminator Package 1 LEDi-Base, LEDi-RGB; one rare earth magnet stir bar, LED safety goggles. Dimensions [ Foot Print: 7x7 inches (18x18 cm) ] [ Beam Diameter: Approximately 0.5¡± at 1¡± from lens ] Weight [ Approximately 3 lbs or 1.3 Kg ] Power Rating [ 110/220 VAC, 50/60 Hz cycle, 1.6 Amp ] Ambient Temperature [ Maintain between 10 and 35¡Æ C ] Chamber Temperature [ Sample compartment stabilizes about 5¡Æ C above ambient temperature. ] [ Includes built-in magnetic mixer. ]
LEDi-KIT1 LED Illuminator Package 1 LEDi-Base, LEDi-RGB; one rare earth magnet stir bar, LED safety goggles. Dimensions [ Foot Print: 7x7 inches (18x18 cm) ] [ Beam Diameter: Approximately 0.5¡± at 1¡± from lens ] Weight [ Approximately 3 lbs or 1.3 Kg ] Power Rating [ 110/220 VAC, 50/60 Hz cycle, 1.6 Amp ] Ambient Temperature [ Maintain between 10 and 35¡Æ C ] Chamber Temperature [ Sample compartment stabilizes about 5¡Æ C above ambient temperature. ] [ Includes built-in magnetic mixer. ]
  •
  •
