Luzchem Solar Simulators are intended for Solar matching of the UV and Visible spectrum. Luzchem offers 3 solar simulator products.
1. SolSim is a manual photoreactor for matching the solar
spectrum in the UV and visible regions.

2. SolSim2 is a manual photoreactor with excellent solar
matching above 320 nm, it features an ozone-free lamp
which eliminates the need to exhaust to a fumehood.

3. CCP-SolSim is a computer controlled photoreactor which
matches the solar spectrum in the UV and visible regions.
°Ë»ö
Àüü¼±ÅÃ
Thumbnail Catalog Description Packaging Specification

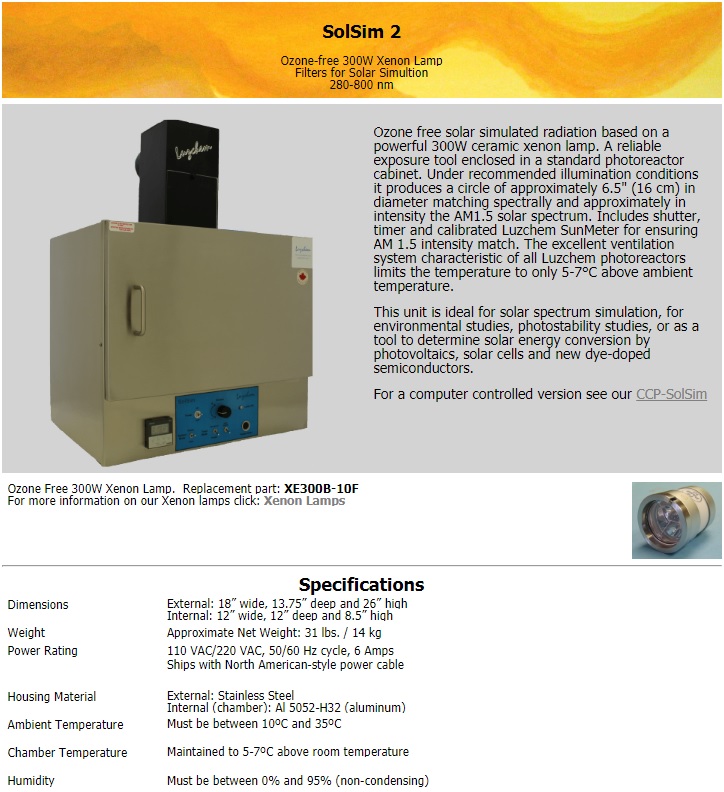

SolSim 2 Ozone-free 300W Xenon Lamp Filters for Solar Simultion 280-800 nm Ozone Free Solar Simulator reproduces AM1.5 solar spectrum from 310-800 nm. Includes ozone-free 300 W xenon lamp, shutter, digital timer, variable power, filters for solar simulation, bulkhead connector for gases, safety goggles and safe exhaust. Sunmeter calibrated for AM1.5 matching and solar spectral data included. Dimensions [ External: 18¡± wide, 13.75¡± deep and 26¡± high ] [ Internal: 12¡± wide, 12¡± deep and 8.5¡± high ] Weight [ Approximate Net Weight: 31 lbs. / 14 kg ] Power Rating [ 110 VAC/220 VAC, 50/60 Hz cycle, 6 Amps ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum) ] Ambient Temperature [ Must be between 10¨¬C and 35¨¬C ] Chamber Temperature [ Maintained to 5-7¨¬C above room temperature ] Humidity [ Must be between 0% and 95% (non-condensing) ]

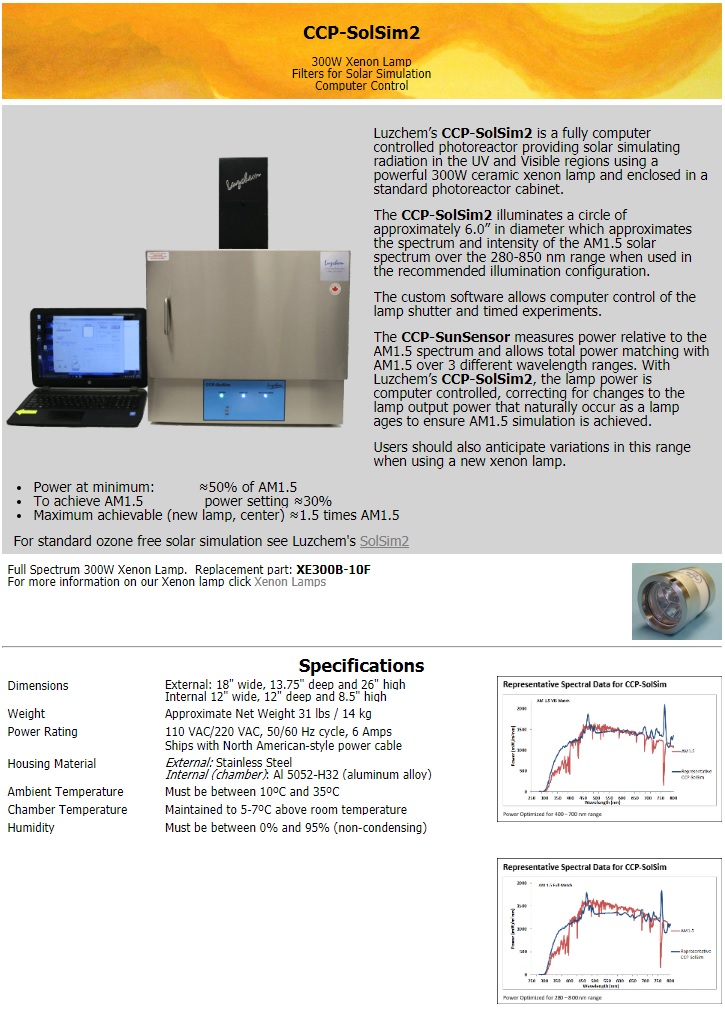

CCP-SolSim2 300W Xenon Lamp Filters for Solar Simulation Computer Control Fully computerized using USB interface. Software logs exposure time. Solar Simulator reproduces AM1.5 solar spectrum from 310-800 nm. Includes 300 W ozone-free xenon lamp, shutter, countdown timer, variable power and filters for solar simulation. Bulkhead connector for gases, safety goggles and safe exhaust included. Sun meter/power sensor calibrated for AM1.5 matching and solar spectral data included. Includes notebook computer with pre-installed CCP software. Dimensions [ External: 18" wide, 13.75" deep and 26" high ] [ Internal 12" wide, 12" deep and 8.5" high ] Weight [ Approximate Net Weight 31 lbs / 14 kg ] Power Rating [ 110 VAC/220 VAC, 50/60 Hz cycle, 6 Amps ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum alloy) ] Ambient Temperature [ Must be between 10¨¬C and 35¨¬C ] Chamber Temperature [ Maintained to 5-7¨¬C above room temperature ] Humidity [ Must be between 0% and 95% (non-condensing) ]
SolSim 2 Ozone-free 300W Xenon Lamp Filters for Solar Simultion 280-800 nm Ozone Free Solar Simulator reproduces AM1.5 solar spectrum from 310-800 nm. Includes ozone-free 300 W xenon lamp, shutter, digital timer, variable power, filters for solar simulation, bulkhead connector for gases, safety goggles and safe exhaust. Sunmeter calibrated for AM1.5 matching and solar spectral data included. Dimensions [ External: 18¡± wide, 13.75¡± deep and 26¡± high ] [ Internal: 12¡± wide, 12¡± deep and 8.5¡± high ] Weight [ Approximate Net Weight: 31 lbs. / 14 kg ] Power Rating [ 110 VAC/220 VAC, 50/60 Hz cycle, 6 Amps ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum) ] Ambient Temperature [ Must be between 10¨¬C and 35¨¬C ] Chamber Temperature [ Maintained to 5-7¨¬C above room temperature ] Humidity [ Must be between 0% and 95% (non-condensing) ]
CCP-SolSim2 300W Xenon Lamp Filters for Solar Simulation Computer Control Fully computerized using USB interface. Software logs exposure time. Solar Simulator reproduces AM1.5 solar spectrum from 310-800 nm. Includes 300 W ozone-free xenon lamp, shutter, countdown timer, variable power and filters for solar simulation. Bulkhead connector for gases, safety goggles and safe exhaust included. Sun meter/power sensor calibrated for AM1.5 matching and solar spectral data included. Includes notebook computer with pre-installed CCP software. Dimensions [ External: 18" wide, 13.75" deep and 26" high ] [ Internal 12" wide, 12" deep and 8.5" high ] Weight [ Approximate Net Weight 31 lbs / 14 kg ] Power Rating [ 110 VAC/220 VAC, 50/60 Hz cycle, 6 Amps ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum alloy) ] Ambient Temperature [ Must be between 10¨¬C and 35¨¬C ] Chamber Temperature [ Maintained to 5-7¨¬C above room temperature ] Humidity [ Must be between 0% and 95% (non-condensing) ]
  •
  •
