LZC UV/VIS Photoreactors - LED & FluorescentLED PhotoreactorsXenon (Full Spectrum) PhotoreactorsICH Compliant PhotoreactorsComputer Controlled Photoreactors
LUZCHEM has designed a line of photoreactors that fully complies with ICH guidelines for drug photostability testing under ICH option-1 or option-2 exposure.
Available in standard and computer controlled options
The Fluorescent photoreactors are certified for ICH compliance under option-2 and include UVA and visible lamps and everything needed of ICH option 2 testing.

The Xenon photoreactors are certified for ICH compliance under option-1 and include Xenon lamps and all necessary filters for ICH option 1 testing.
검색

빠른 검색을 원하시면 오른쪽 빈칸에 직접 입력 후 검색해주세요.

전체선택
Thumbnail Catalog Description Packaging Specification

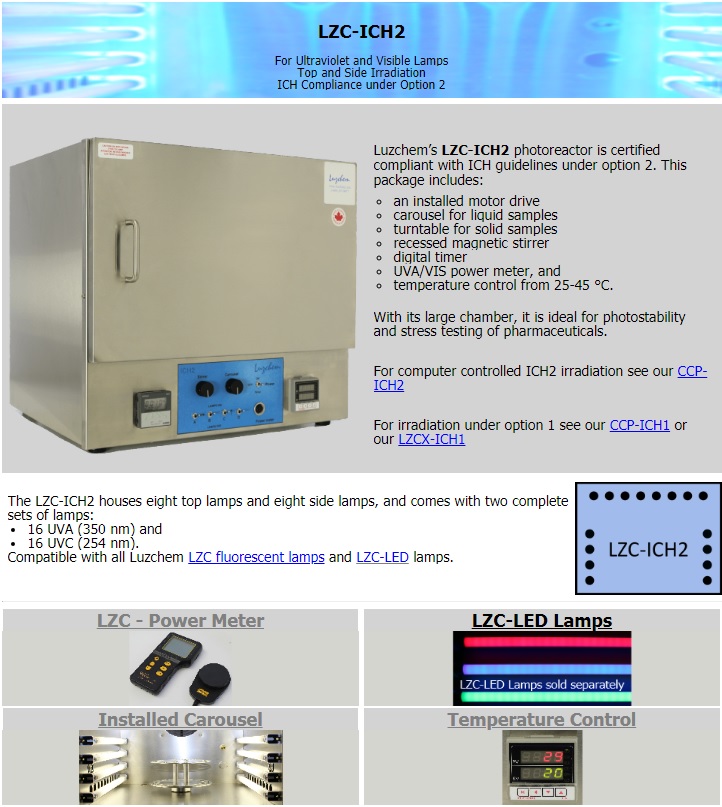

LZC-ICH2 For Ultraviolet and Visible Lamps Top and Side Irradiation ICH Compliance under Option 2 Certified compliant with ICH guidelines under option 2. Includes 16 UVA and 16 visible lamps. Carousel for liquids and a turntable for solid samples. Recessed magnetic stirrer. Digital timer allows for timed irradiation from a few seconds to 99 hours. UVA/VIS power meter. Bulkhead connector for gases, safety goggles and a safe exhaust system are also included. The temperature control range is from 25 to 45 Celsius. Certification includes mapping of energy distribution in the chamber. Dimensions [ External: 18" wide, 21" deep (with exhaust) and 16.5" high (46 x 53 x 42 cm) ] [ Internal: 12" wide, 12" deep and 8.5" high (30 x 30 x 22 cm) ] Weight [ Net Weight: 24 lbs. / 11 kg ] Power Rating [ 110 VAC/220 VAC, 50/60 Hz cycle, 3 Amps ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum alloy) ] Ambient Temperature [ Must be between 10ºC and 35ºC ] Chamber Temperature [ Maintained from 4-5ºC above room temperature upto 45ºC. ] Humidity [ Must be between 0% and 95% (non-condensing) ]

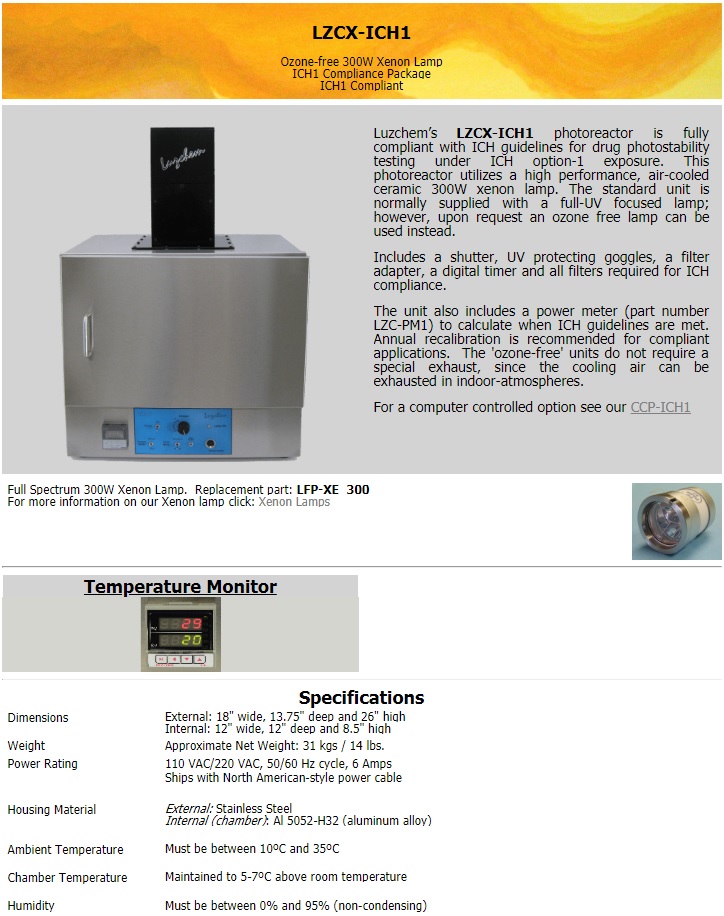

LZCX-ICH1 Ozone-free 300W Xenon Lamp ICH1 Compliance Package ICH1 Compliant Certified compliant with ICH guidelines option 1 (includes filters required for ICH compliance). Xenon photoreactor includes ozone-free 300W ceramic xenon lamp, shutter, dimmer, digital timer, bulkhead connector for gases, safety goggles and a safe exhaust system included. Certification includes mapping of energy distribution in the chamber. Dimensions [ External: 18" wide, 13.75" deep and 26" high ] [ Internal: 12" wide, 12" deep and 8.5" high ] Weight [ Approximate Net Weight: 31 kgs / 14 lbs. ] Power Rating [ 110 VAC/220 VAC, 50/60 Hz cycle, 6 Amps ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum alloy) ] Ambient Temperature [ Must be between 10ºC and 35ºC ] Chamber Temperature [ Maintained to 5-7ºC above room temperature ] Humidity [ Must be between 0% and 95% (non-condensing) ]

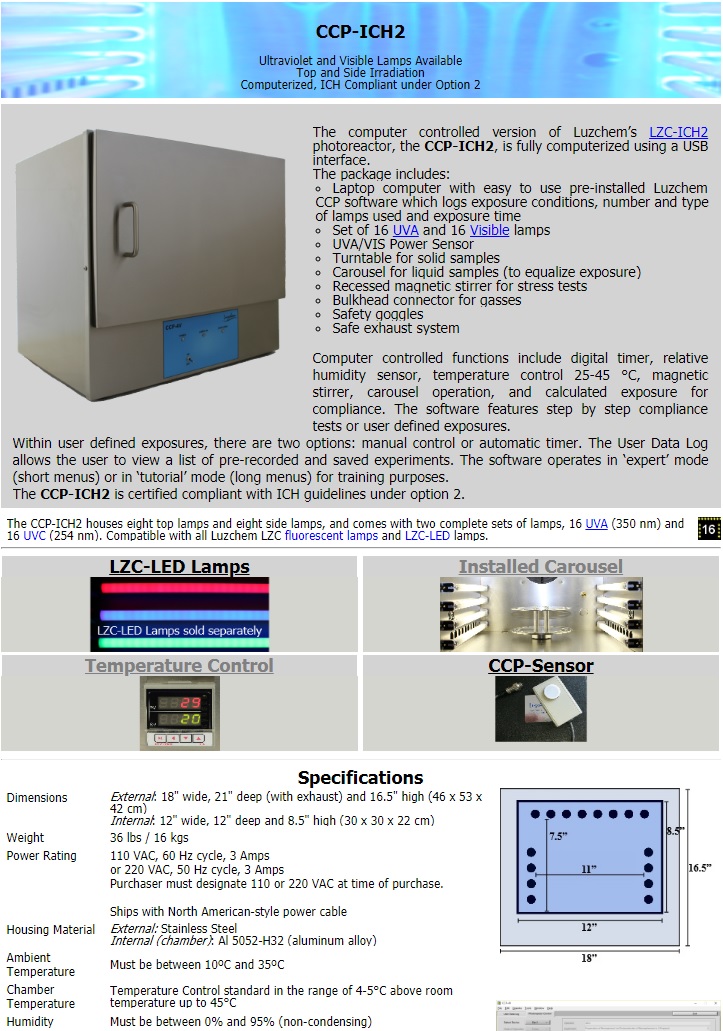

CCP-ICH2 Ultraviolet and Visible Lamps Available Top and Side Irradiation Computerized, ICH Compliant under Option 2 The latest in exposure chamber technology. Fully computerized using a USB interface. Logs exposure conditions, lamps used and time. Certified compliant with ICH guidelines under option 2. Photoreactor accommodates 16 lamps. Includes 16 UVA and 16 VIS lamps, safe exhaust system, safety goggles, installed drive motor, carousel, turntable, recessed magnetic stirrer, bulkhead connector for gases, UVA/VIS power sensor & timer. Includes notebook computer with pre-installed CCP software. Dimensions [ External: 18" wide, 21" deep (with exhaust) and 16.5" high (46 x 53 x 42 cm) ] [ Internal: 12" wide, 12" deep and 8.5" high (30 x 30 x 22 cm) ] Weight [ 36 lbs / 16 kgs ] Power Rating [ 110 VAC, 60 Hz cycle, 3 Amps or 220 VAC, 50 Hz cycle, 3 Amps ] [ Purchaser must designate 110 or 220 VAC at time of purchase. ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum alloy) ] Ambient Temperature [ Must be between 10ºC and 35ºC ] Chamber Temperature [ Temperature Control standard in the range of 4-5°C above room temperature up to 45°C ] Humidity [ Must be between 0% and 95% (non-condensing) ]

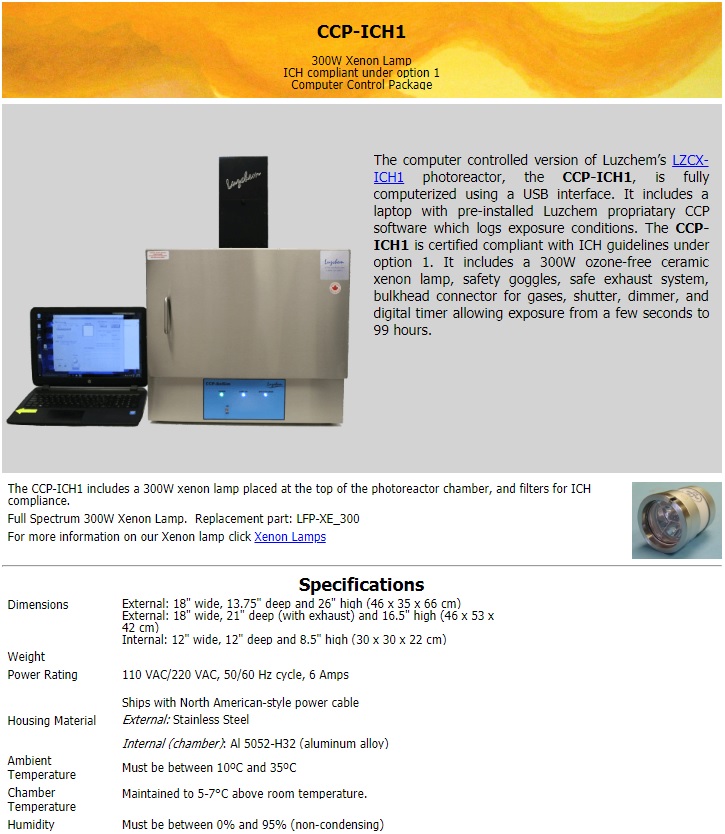

CCP-ICH1 300W Xenon Lamp ICH compliant under option 1 Computer Control Package The latest in exposure chamber technology. Fully computerized using a USB interface. Logs exposure conditions. Certified compliant with ICH guidelines under option 1. Xenon photoreactor includes 300W ozone-free ceramic xenon lamp, safety goggles, safe exhaust system, bulkhead connector for gases, shutter, dimmer and digital timer allowing exposure from a few seconds to 99 hours. Includes notebook computer with pre-installed CCP software. Dimensions [ External: 18" wide, 13.75" deep and 26" high (46 x 35 x 66 cm) ] [ External: 18" wide, 21" deep (with exhaust) and 16.5" high (46 x 53 x 42 cm) ] [ Internal: 12" wide, 12" deep and 8.5" high (30 x 30 x 22 cm) ] Power Rating [ 110 VAC/220 VAC, 50/60 Hz cycle, 6 Amps ] [ Ships with North American-style power cable ] Housing Material [ External: Stainless Steel ] [ Internal (chamber): Al 5052-H32 (aluminum alloy) ] Ambient Temperature [ Must be between 10ºC and 35ºC ] Chamber Temperature [ Maintained to 5-7°C above room temperature. ] Humidity [ Must be between 0% and 95% (non-condensing) ]
  •
  •
