Our sample tubes are used for X-ray fine structure analysis of single crystals, powder specimens, and liquid crystals. Based on the low absorption through the glass the extremely thin-walled capillaries allow the analysis of small samples sealed in a gas and moisture proof environment.
According to the Debye-Scherrer method or in gerneral SAXS (small angle x-Ray scattering) and WAXS (wide angle x-Ray scattering) measurements can be made with our mark tubes, which are also named XRD capillaries. The wall thickness of only about 10 μm makes the tubes particularly suitable for high-precision measurements. Thanks to the wide funnel at the upper end, samples can be filled easily into tubes even with the smallest diameter.

Absorption coefficients
Our test tubes are manufactured of various types of glass with different linear absorption coefficients, so that a suitable tube can be found for practically every application. High quality standards are maintained during production, which can also be adapted to suit individual customer requirements.
검색
전체선택
Thumbnail Catalog Description Packaging Specification

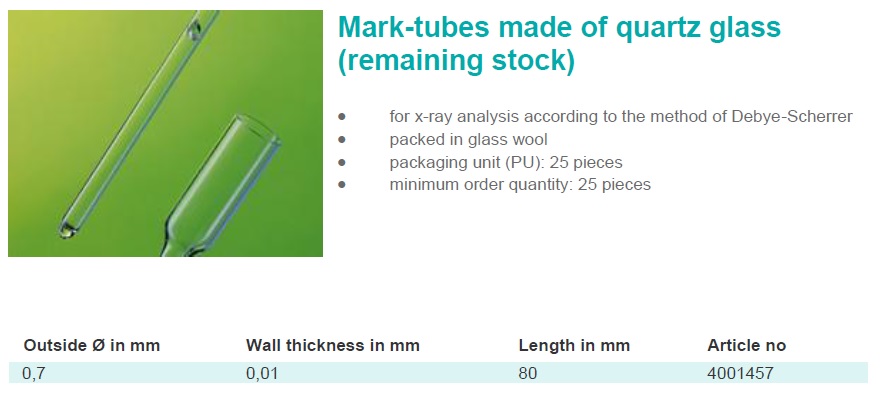

4001457 Mark-tubes made of quartz glass (remaining stock) •packaging unit (PU): 25 pieces •minimum order quantity: 25 pieces [그림참조] Mark-tubes made of quartz glass (remaining stock)

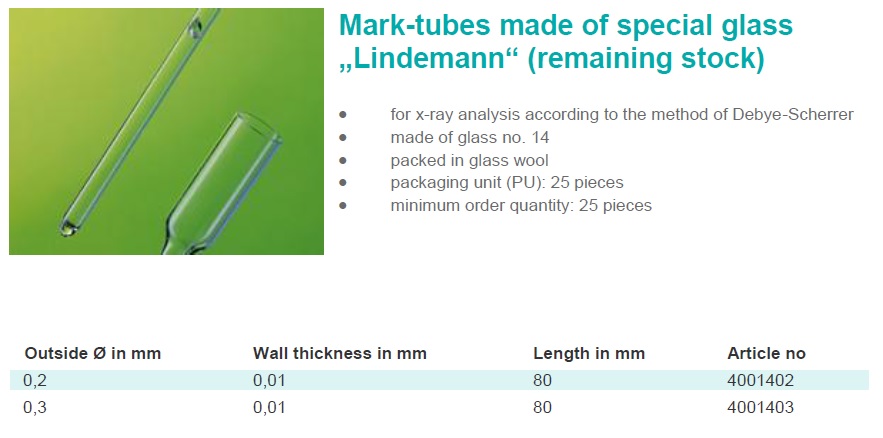

4001402 4001403 Mark-tubes made of special glass “Lindemann” (remaining stock) •packaging unit (PU): 25 pieces •minimum order quantity: 25 pieces [그림참조] Mark-tubes made of special glass “Lindemann” (remaining stock)

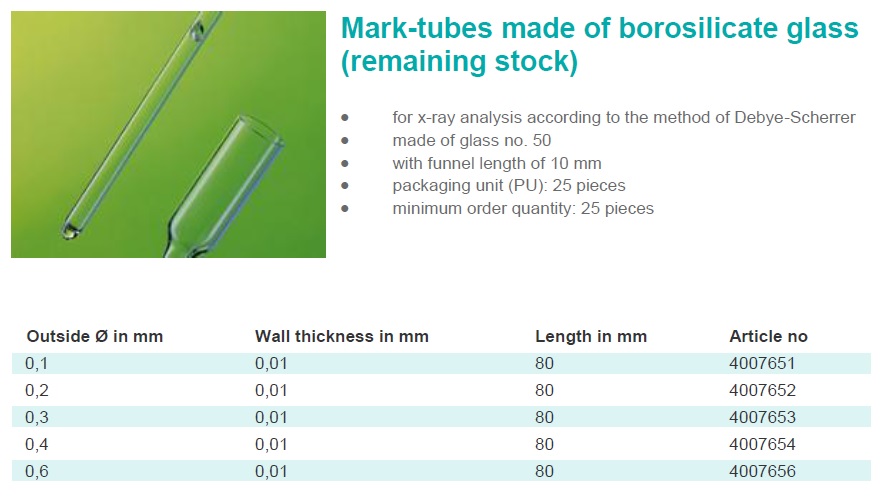

4007651 4007652 4007653 4007654 4007656 Mark-tubes made of borosilicate glass (remaining stock) •packaging unit (PU): 25 pieces •minimum order quantity: 25 pieces [그림참조] Mark-tubes made of borosilicate glass (remaining stock)

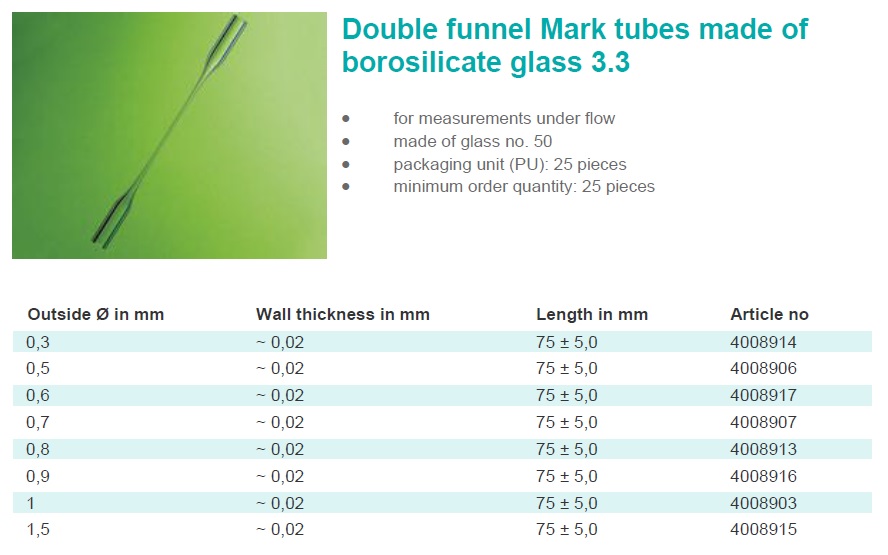

4008914 4008906 4008917 4008907 4008913 4008916 4008903 4008915 Double funnel Mark tubes made of borosilicate glass 3.3 •packaging unit (PU): 25 pieces •minimum order quantity: 25 pieces [그림참조] Double funnel Mark tubes made of borosilicate glass 3.3

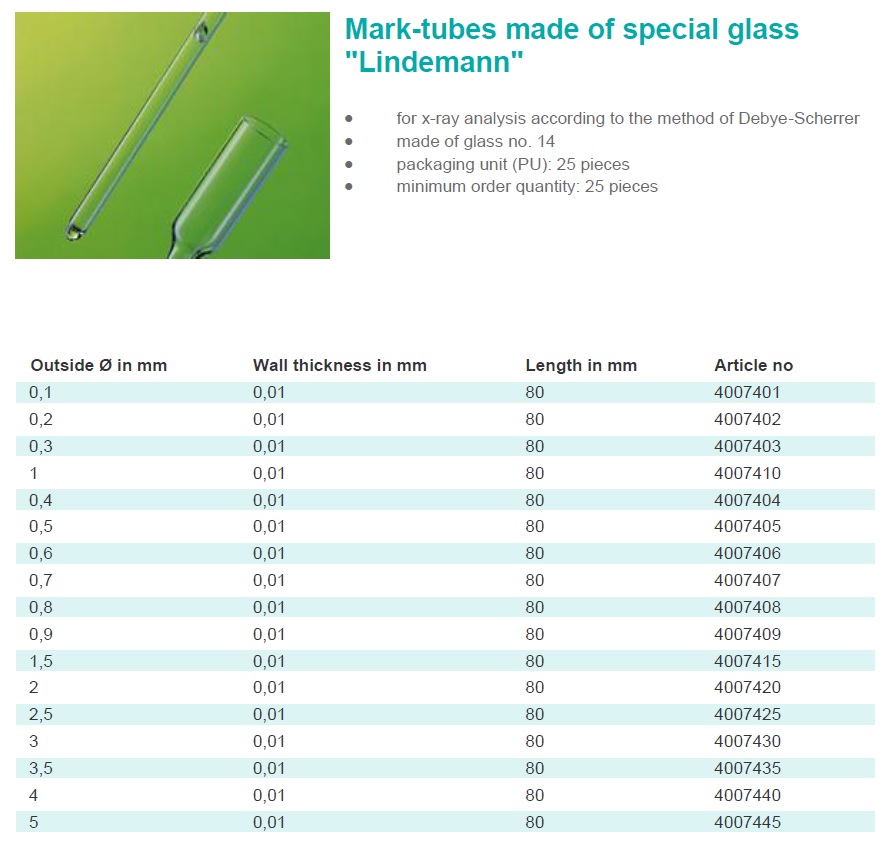

4007401 4007402 4007403 4007410 4007404 4007405 4007406 4007407 4007408 4007409 ... Mark-tubes made of special glass "Lindemann" •packaging unit (PU): 25 pieces •minimum order quantity: 25 pieces [그림참조] Mark-tubes made of special glass "Lindemann"

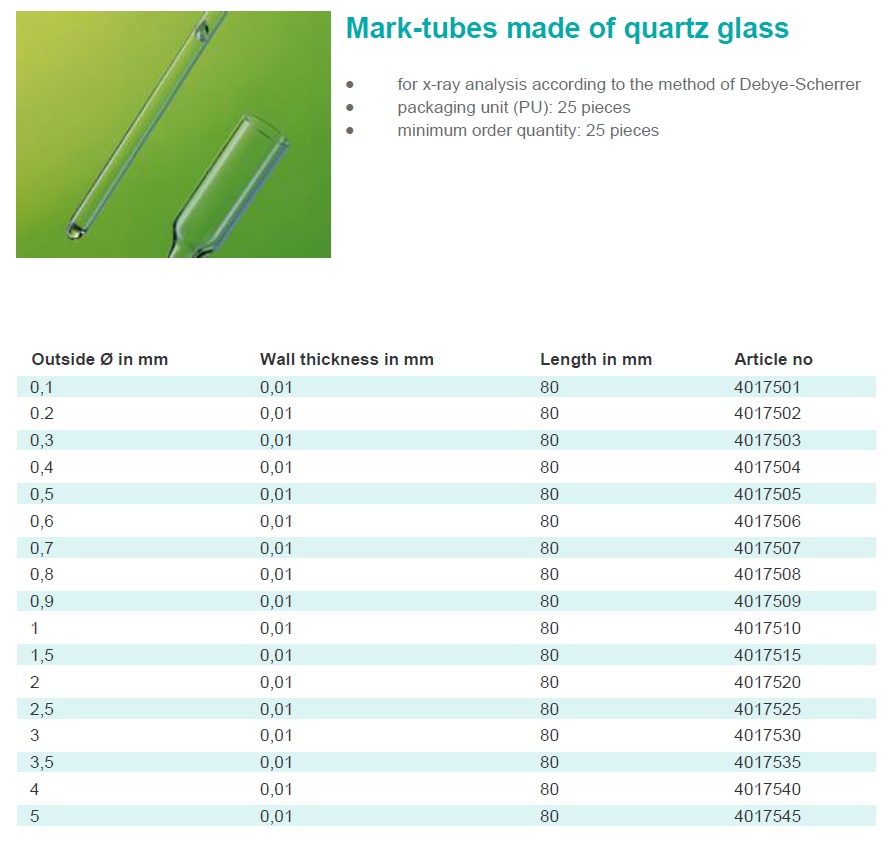

4017501 4017502 4017503 4017504 4017505 4017506 4017507 4017508 4017509 4017510 ... Mark-tubes made of quartz glass •packaging unit (PU): 25 pieces •minimum order quantity: 25 pieces [그림참조] Mark-tubes made of quartz glass

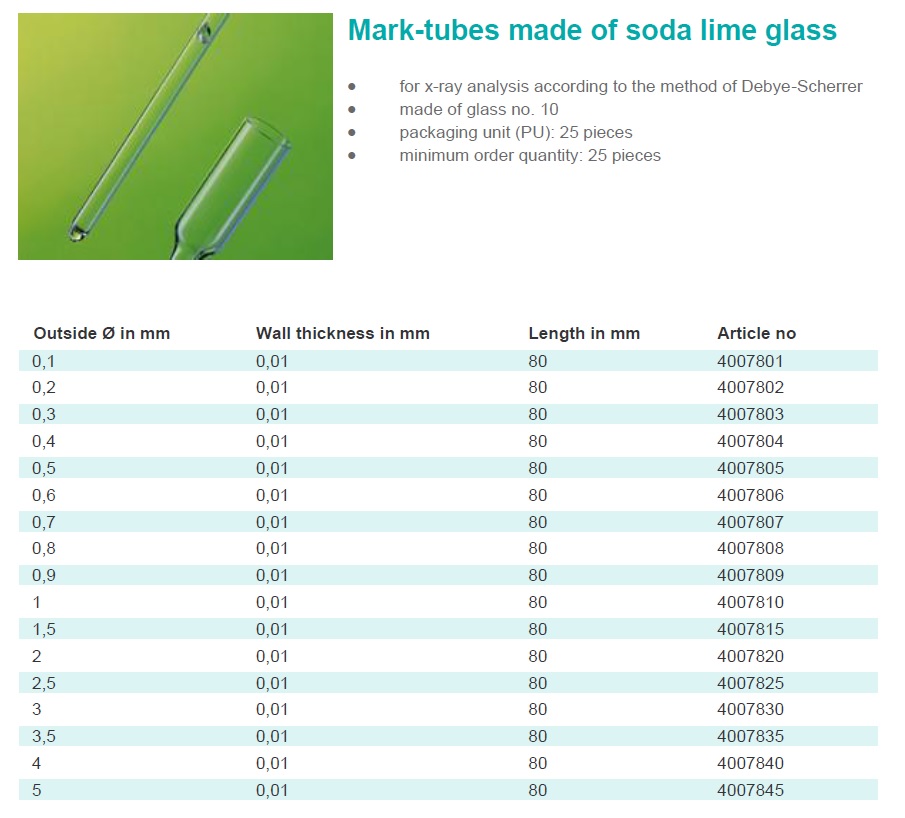

4007801 4007802 4007803 4007804 4007805 4007806 4007807 4007808 4007809 4007810 ... Mark-tubes made of soda lime glass •packaging unit (PU): 25 pieces •minimum order quantity: 25 pieces [그림참조] Mark-tubes made of soda lime glass
4007601 4007602 4007603 4007604 4007605 4007606 4007607 4007608 4007609 4007610 ... Mark-tubes made of borosilicate glass •packaging unit (PU): 25 pieces •minimum order quantity: 25 pieces [그림참조] Mark-tubes made of borosilicate glass
  •
  •
  • 1
  •
  •
