Our systematic research into new processing methods enables us to improve our production processes and the manufacturing of new products.

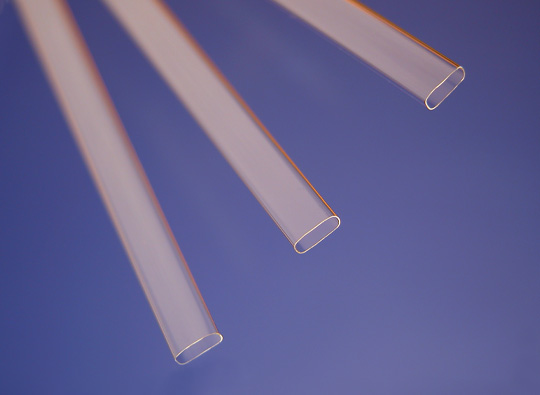

In this way we are able to realize e.g. extremely thin-walled capillaries with two parallel surfaces.
In this process the production of various widths and heights are possible.
The innovative manufacturing procedure permits us to produce wall thicknesses of less than 150 μm. Thanks to the minimal wall thickness and parallel sides these capillaries are perfect for high-precision measurements, because the measurement signals are hardly disturbed or absorbed. Therefore, these capillaries are ideally suited for the use as measuring cuvettes and flow cells

*Materials
Soda-lime glass (AR, I860, PH360 etc.)
Borosilicate glass (DURANⓒ, PYREXⓒ, SIMAXⓒ etc.)
Aluminium silicate glass (Schott 8252/8253)
Lead glass (lead content up to 28%

*Dimensions
s Length: up to 1060 mm
Width (max.): 10 mm
Height (max.): 6 mm
Wall thickness: 0,100 - 0,300 mm
검색
전체선택
Thumbnail Catalog Description Packaging Specification
Custom requests Custom requests Custom requests [파일참조] Capillary and Rod profiles (Custom requests)

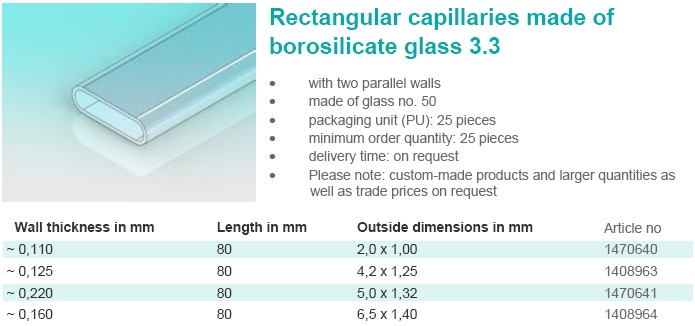

1470640 1408963 1470641 1408964 Rectangular capillaries made of borosilicate glass 3.3 • packaging unit (PU): 25 pieces • minimum order quantity: 25 pieces [그림참조] Rectangular capillaries made of borosilicate glass 3.3
  •
  •
